SELECT A DIAGRAM

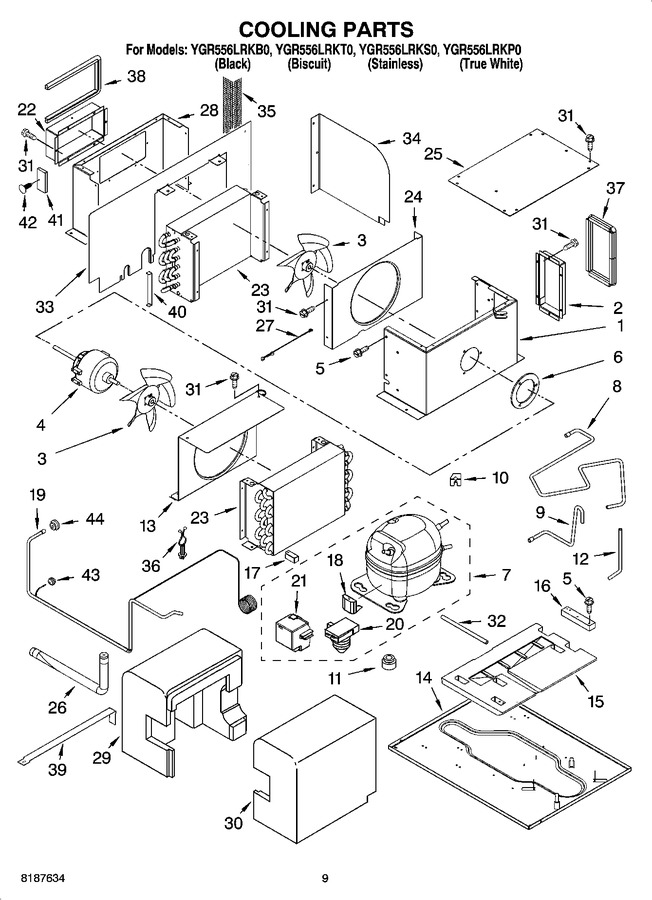

01 - Cooktop Parts


02 - Door And Drawer Parts


03 - Oven Chassis Parts


04 - Oven Parts


05 - Rear Chassis Parts


06 - Cooling Parts


07 - Control Panel Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4453356		Box, Evap (right)		Appelez-nous	-
2	4453437		Box, Evap (r.h. Adapter)		Appelez-nous	-
3	4453359		Blade, Fan (2)		Appelez-nous	-
4	4453357		Motor, Fan		Appelez-nous	-
5	8533832		Screw		Appelez-nous	-
6	4453435		Spacer, Motor		Appelez-nous	-
7	W11735041		Compressor   (Replaces: 2208490)				$ 578.77
8	4453366		Tube, Discharge		Appelez-nous	-
9	4453367		Tube, Discharge (w/ Dryer)		Appelez-nous	-
10	8011446		Clip (4)		Appelez-nous	-
11	950212		Grommet (4)		Appelez-nous	-
12	4453368		Tube, Charge		Appelez-nous	-
13	4453352		Housing, Fan (condenser)		Appelez-nous	-
14	4453346		Plate, Base		Appelez-nous	-
15	4453353		Pan, Drain		Appelez-nous	-
16	4453375		Spacer (2)		Appelez-nous	-
17	4453347		Spacer, Evap		Appelez-nous	-
18	WP2217223		Overload   (Replaces: 2217223)				$ 122.32
19	4453376		Tube, Suction		Appelez-nous	-
20	WP2217224		Relay, Start   (Replaces: 2217224)			Immediately	$ 89.85
21	WP2162358		Cover, Terminal   (Replaces: 2208371)				$ 81.68
22	4453436		Box, Evap (l.h. Adapter)		Appelez-nous	-
23	4453349		Exchanger, Heat		Appelez-nous	-
24	4453358		Housing, Fan (evap)		Appelez-nous	-
25	4453361		Box, Evap (top)		Appelez-nous	-
26	4453337		Sleeve		Appelez-nous	-
27	4453686		Dual Cntl, Bimetal		Appelez-nous	-
28	4453355		Box, Evap (left)		Appelez-nous	-
29	9755052		Insulation, Rear Cooling		Appelez-nous	-
30	9755053		Insulation, Front Cooling Module		Appelez-nous	-
31	8533833		Screw		Appelez-nous	-
32	8186363		Tube, Drain   (Replaces: 9755152)		Appelez-nous	-
33	9782493		Shield, Baffle		Appelez-nous	-
34	9782494		Shield, Fence		Appelez-nous	-
35	9782507		Shield, Fan		Appelez-nous	-
36	4453657		Clip, Standoff		Appelez-nous	-
37	4453666		Seal, Rear		Appelez-nous	-
38	4453654		Seal, Side		Appelez-nous	-
39	4453677		Bracket, Top		Appelez-nous	-
40	9755119		Bracket, Hold Down		Appelez-nous	-
41	9755123		Seal, Front Side		Appelez-nous	-
42	9755122		Rivet, Plastic		Appelez-nous	-
43	9755150		Grommet		Appelez-nous	-
44	9755154		Grommet, Sq Btm		Appelez-nous	-
