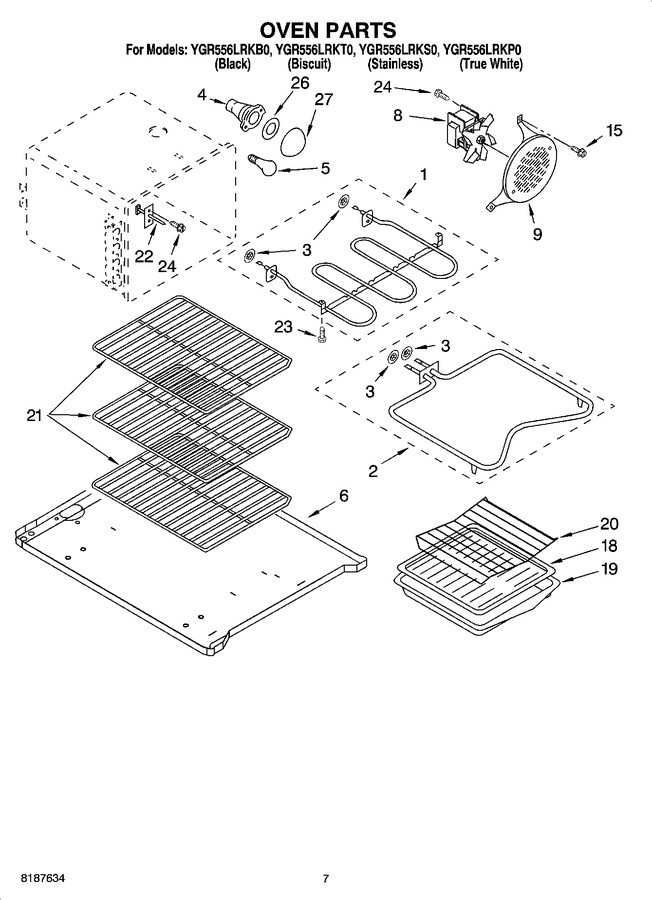

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4453681 Element, Broil Appelez-nous -
2 4453682 Element, Bake Appelez-nous -
3 WP3400968 Nut, Speed   (Replaces: 3400968) In-Stock Immediately $ 7.01

4 W11594027 Socket, Light   (Replaces: 9781050) In-Stock Immediately $ 78.31

5 40A15 Bulb, Oven   (Replaces: 8935) In-Stock Immediately $ 1.98

6 9755047 Retainer, Insulation Appelez-nous -
8 9781543 Assembly, Fan Special Order $ 142.09

9 9751904GM Baffle, Convection Appelez-nous -
15 9781509 Screw Appelez-nous -
18 4396923 Grill, Broiler   (Replaces: 420104GM) In-Stock Immediately $ 52.04

19 4396923 Pan, Broiler   (Replaces: 420101GM) In-Stock Immediately $ 52.04

20 9750827 Rack, Roasting Appelez-nous -
21 9750823 Rack, Standard Appelez-nous -
22 9782081 Sensor Special Order $ 119.40

23 WP3400832 Screw   (Replaces: 3196168) In-Stock Immediately $ 6.98

24 9780272 Screw Appelez-nous -
26 WP3184533 Gasket, Len`s   (Replaces: 3184533) In-Stock Immediately $ 7.73

27 WP9781049 Lens, Light   (Replaces: 9781049) In-Stock Immediately $ 71.93


    View Diagram in Separate Window     Print Icon   Print Part List
