01 - Cooktop Parts


02 - Control Panel Parts


03 - Cooktop Burner Parts


04 - Broiler & Oven Burner Parts

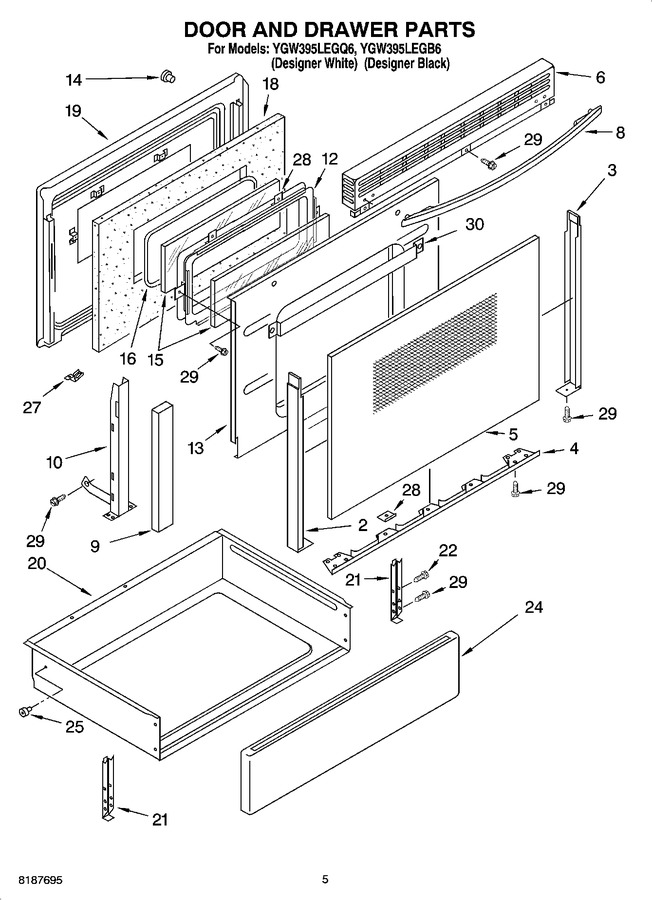

05 - Door And Drawer Parts


06 - Oven Chassis Parts


07 - Rear Chassis Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PW		Trim, Door-left (white)		Appelez-nous	-
2	9782003PB		Trim, Door-left (black)		Appelez-nous	-
3	9782004PB		Trim, Door-right (black)		Appelez-nous	-
3	9782004PW		Trim, Door-right (white)		Appelez-nous	-
4	9781209PB		Trim, Door Bottom (black)		Appelez-nous	-
4	9781209PW		Trim, Door Bottom (white)		Appelez-nous	-
5	9781694PB		Glass, Door (black)		Appelez-nous	-
5	9781694PW		Glass, Door (white)		Appelez-nous	-
6	9781490		Seal, Door Vent Side		Appelez-nous	-
6	9753498GB		Vent, Door (black)		Appelez-nous	-
6	9753498GW		Vent, Door (white)		Appelez-nous	-
6	9781659		Gasket, Door Vent		Appelez-nous	-
8	9752701PW		Handle, Door (white)		Appelez-nous	-
8	9752701PB		Handle, Door (black)		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP90296		Clip   (Replaces: 90296)				$ 7.07
10	WP9782033		Hinge, Door R Or L   (Replaces: 9782033)			Immediately	$ 208.67
12	9781602		Frame, Window		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 72.68
15	WP9781593		Glass, Door (2)   (Replaces: 9781593)				$ 116.35
16	9755177		Seal, Glass				$ 76.91
18	9754006		Insulation		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	3400075		Screw (4) 10 X 1/2		Appelez-nous	-
24	9782108PB		Front, Drawer (black)		Appelez-nous	-
24	9782108PW		Front, Drawer (white)		Appelez-nous	-
25	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
27	WP90296		Clip   (Replaces: 90296)				$ 7.07
27	9750676		Retainer, Panel		Appelez-nous	-
28	9781502		Retainer, Glass		Appelez-nous	-
29	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
30	9750693		Channel, Heat		Appelez-nous	-
