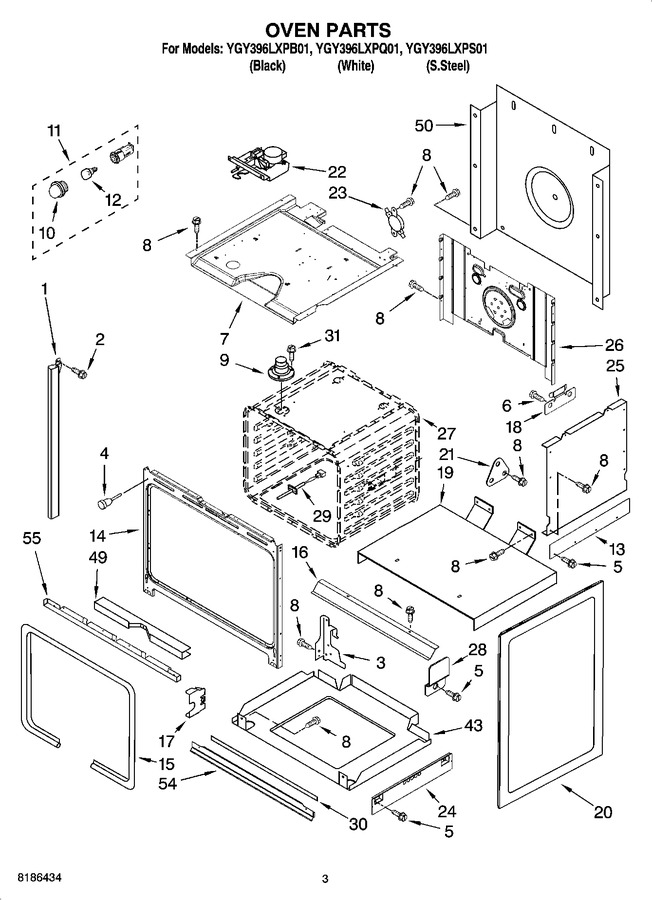

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757734SS | Trim, Side (left Hand) (s.steel) |
|
- | |||||
| 1 | 9757735WH | Trim, Side (right Hand) (white) |
|
- | |||||
| 1 | 9757735BL | Trim, Side (right Hand) (black) |
|
- | |||||
| 1 | 9757735SS | Trim, Side (right Hand) (s.steel) |
|
- | |||||
| 1 | 9757734WH | Trim, Side (left Hand) (white) |
|
- | |||||
| 1 | 9757734BL | Trim, Side (left Hand) (black) |
|
- | |||||
| 2 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 19.07 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 48.26 | ||||
| 13 | 9757732 | Shield, Heat |
|
- | |||||
| 14 | 9759060 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 62.78 | ||||
| 16 | 4453951 | Deflector, Vent Bottom |
|
- | |||||
| 17 | 4452152 | Bracket, Mounting |
|
$ 30.15 | |||||
| 18 | 9757685 | Guide, Side Panel |
|
$ 36.23 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 20 | 9760723PW | Body, Side (white) |
|
- | |||||
| 20 | 9760723PB | Body, Side Black |
|
- | |||||
| 21 | 9757461 | Bracket, Side Panel |
|
$ 37.11 | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 295.79 | ||||
| 23 | 341196 | Thermostat Spst (205) |
|
$ 33.17 | |||||
| 24 | 9757811 | Brace, Side Panel |
|
- | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 28 | 9759890 | Clip, Side Panel |
|
$ 9.71 | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 86.25 | ||||
| 30 | 9757717 | Insulation |
|
- | |||||
| 31 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 7.97 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 128.63 | |||||
| 54 | 9756481SS | Vent, Bottom Upper (s. Steel) |
|
- | |||||
| 54 | 9756481WH | Vent, Bottom Upper (white) |
|
- | |||||
| 54 | 9756481BL | Vent, Bottom Upper (black) |
|
- | |||||
| 55 | 9756485SS | Trim, Btm Vent (s.steel) |
|
- | |||||
| 55 | 9756817 | Insulation, Wrap |
|
$ 76.03 | |||||
| 55 | 9756470 | Insulation, Back |
|
$ 68.08 | |||||
| 55 | 9756485WH | Trim, Btm Vent (white) |
|
- | |||||
| 55 | 9756485BL | Vent, Bottom Lower (black) |
|
- |
