View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

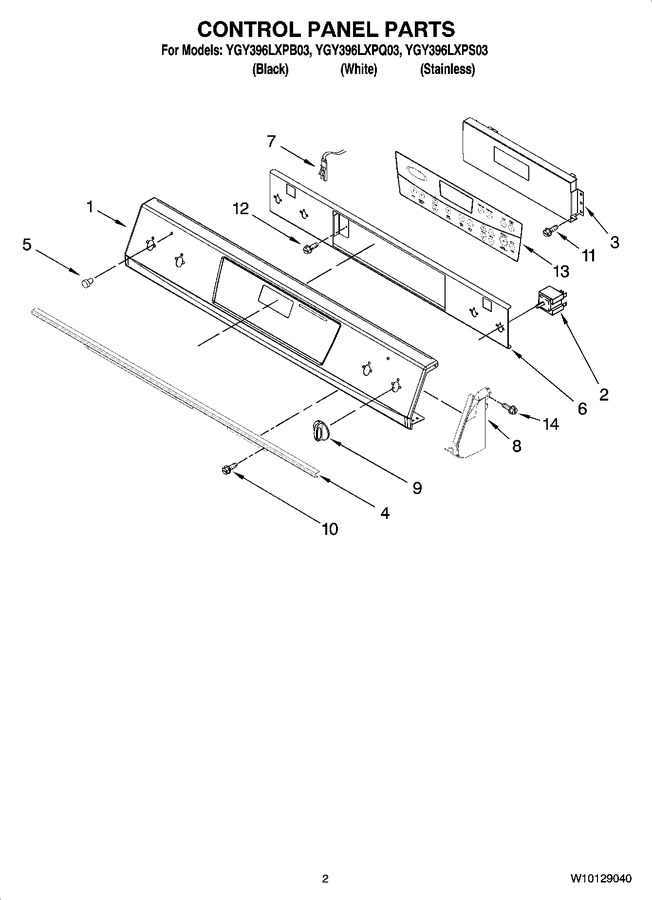

02 - Control Panel Parts
03 - Oven Parts
04 - Door Parts
05 - Drawer Parts
06 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10036010 | Control Panel (black) |
|
$ 159.00 | |||||
| 1 | W10036000 | Control Panel (white) |
|
$ 128.42 | |||||
| 2 | WP9750641 | Switch, Infinite (lf) (Replaces: 9750641) |
|
Immediately | $ 92.72 | ||||
| 2 | WP9750638 | Switch, Infinite (lr, Rf) (Replaces: 9750638) |
|
Immediately | $ 102.50 | ||||
| 2 | WP9750639 | Switch, Infinite (rr) (Replaces: 9750639) |
|
Immediately | $ 137.39 | ||||
| 3 | 9757476 | Control, Migration |
|
$ 347.52 | |||||
| 4 | 9757119 | Bracket, Console |
|
- | |||||
| 5 | WP3196068 | Lens, Indictor (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 6 | W10036100 | Bracket, Oven Control |
|
$ 42.77 | |||||
| 7 | WP8523265 | Housing, Indicator Light (2) (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 8 | 9756614WH | Endcap Left (white) |
|
- | |||||
| 8 | 9756614BL | Endcap Left (black) |
|
$ 25.68 | |||||
| 8 | 9756611WH | Endcap Right (white) |
|
- | |||||
| 8 | 9756611BL | Endcap Right (black) |
|
$ 25.95 | |||||
| 9 | 9756659BL | Knob (black) |
|
$ 19.76 | |||||
| 9 | 9756659WH | Knob (white) |
|
$ 20.15 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 11 | 9780271 | Screw |
|
- | |||||
| 12 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 13 | W10078570 | Membrane, Switch |
|
$ 193.33 | |||||
| 14 | 3196172 | Screw |
|
Immediately | $ 11.55 |
