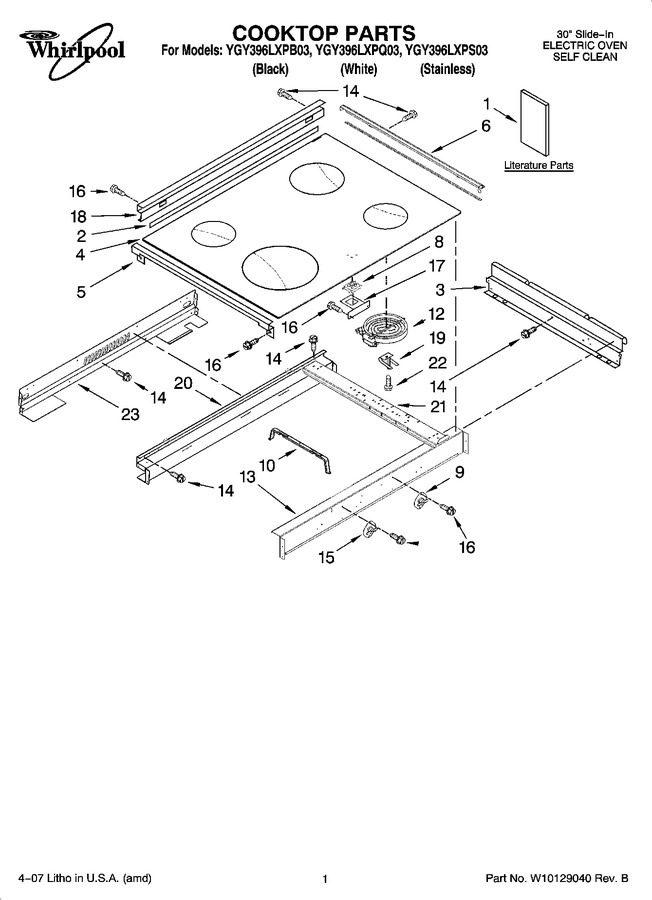

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door Parts
05 - Drawer Parts
06 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9762035 | Installation Instructions |
|
- | |||||
| 1 | 9762257 | Use & Care Guide (english) |
|
- | |||||
| 1 | 9762259 | Use & Care Guide (french) |
|
- | |||||
| 1 | 9761388 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | 9756450 | Gasket |
|
$ 107.73 | |||||
| 3 | 4454023 | Bracket, Mounting |
|
- | |||||
| 4 | 9762069BL | Cooktop (black) |
|
- | |||||
| 4 | 9756788WH | Cooktop (white) |
|
- | |||||
| 5 | 4453764 | Clip, Ceran (2) |
|
- | |||||
| 6 | 9759530SS | Trim, Cooktop Right (stainless) |
|
- | |||||
| 6 | 9759530BL | Trim, Cooktop Right (black) |
|
- | |||||
| 6 | 9759530WH | Trim, Cooktop Right (white) |
|
- | |||||
| 6 | 9759531SS | Trim, Cooktop Left (stainless) |
|
- | |||||
| 6 | 9759531WH | Trim, Cooktop Left (white) |
|
- | |||||
| 6 | 9759531BL | Trim, Cooktop Left (black) |
|
- | |||||
| 8 | 8523739 | Light, Indicator |
|
$ 120.71 | |||||
| 9 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 12 | W10823696 | Element, Surface (2500w Lf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 12 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 12 | W10823711 | Element, Surface (1200w Lr-rf) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 13 | 9757800 | Bracket, Front Support |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 341196 | Thermostat |
|
$ 33.17 | |||||
| 16 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 17 | 9758799 | Bracket, Indicator Lamp |
|
$ 47.83 | |||||
| 18 | 9760520BL | Trim, Extension (black) |
|
- | |||||
| 18 | 9760520SS | Trim, Extension (stainless) |
|
- | |||||
| 18 | 9760520WH | Trim, Extension (white) |
|
- | |||||
| 19 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 20 | 9759963 | Bracket, Rear Support |
|
- | |||||
| 21 | 8285962 | Rail, Element (2) |
|
- | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 23 | 9759628 | Cover, Cooktop Rear |
|
- |
