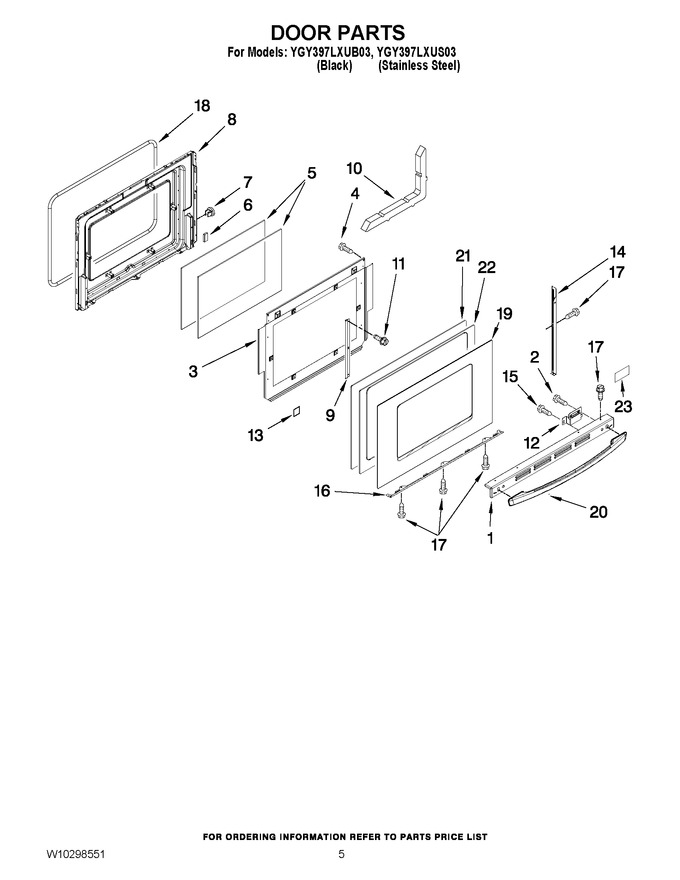

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-70		Trim, Door Top				$ 96.37
2	W11396735		Screw, Handle   (Replaces: W10163951)				$ 12.65
3	3601F373-51		Baffel, Retainer				$ 244.22
4	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 162.53
6	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
7	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
8	2402W312-19		Lining, Door				$ 144.50
9	3801F886-51		Bracket, Glass				$ 38.25
10	7002P246-60		Insulation, Door				$ 58.49
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	3801F831-45		Bracket, Handle (right)				$ 19.17
12	3801F832-45		Bracket, Handle (left)				$ 19.12
13	8010P152-60		Spacer, Rubber		Appelez-nous	-
14	3608F116-70		Trim, Door Side (right)				$ 49.75
14	3608F117-70		Trim, Door Side (left)				$ 49.73
15	7101P208-60		Screw				$ 11.92
16	3807F708-70		Trim, Door Bottom				$ 63.97
17	WP98008545		Screw, Trim   (Replaces: 7101P633-60)				$ 15.94
18	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 77.61
19	7902P815-60		Panel, Outer Door		Appelez-nous	-
20	W10118431		Handle, Door (black)				$ 189.22
20	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 216.57
21	7902P768-60		Glass, Door (ss Model Only)		Appelez-nous	-
22	7902P468-60		Glass. Outer Door (ss Model Only)		Appelez-nous	-
23	W10175320		Nameplate, Logo				$ 41.71
