01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

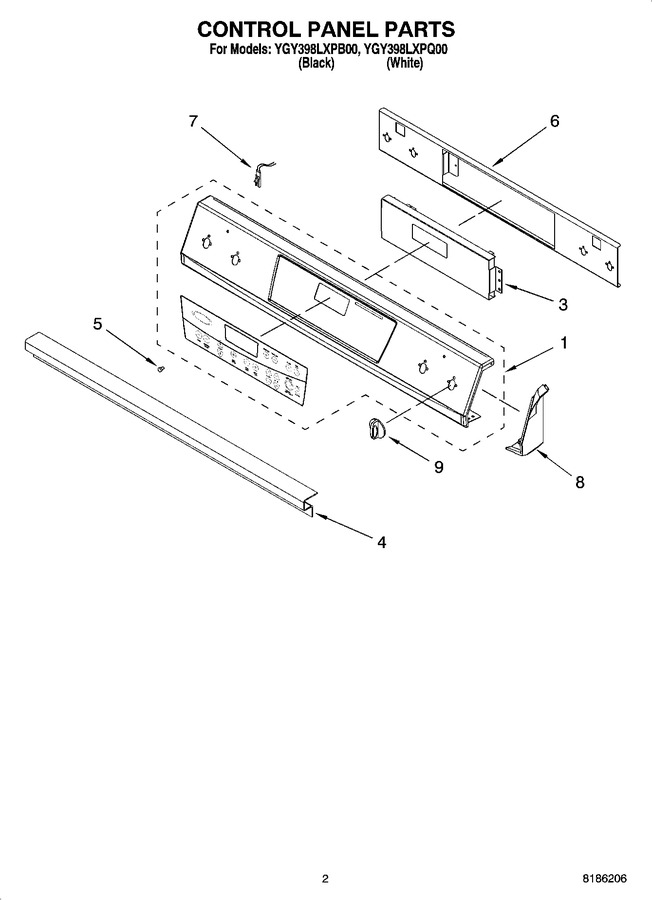

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8191149 | Control Panel (white) |
|
- | |||||
| 1 | 8191151 | Control Panel (black) |
|
- | |||||
| 3 | 9757475 | Control, Migration |
|
$ 291.09 | |||||
| 3 | 9780271 | Screw |
|
- | |||||
| 4 | 9757119 | Bracket, Console |
|
- | |||||
| 4 | 3179776 | Screw (3) |
|
- | |||||
| 5 | WP3196068 | Lens, Ind. (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 6 | 9757410 | Bracket, Control |
|
- | |||||
| 6 | WP486579 | Screw (Replaces: 486579) |
|
$ 6.61 | |||||
| 7 | WP8523265 | Housing, Ind. Lt. (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 8 | 9756614WH | Endcap (white Lh) |
|
- | |||||
| 8 | 9756614BL | Endcap (black Lh) |
|
$ 25.68 | |||||
| 8 | 9756611WH | Endcap (white Rh) |
|
- | |||||
| 8 | 9756611BL | Endcap (black Rh) |
|
$ 25.95 | |||||
| 8 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 9 | 9756659BL | Knob (black) |
|
$ 19.76 | |||||
| 9 | 9756659WH | Knob (white) |
|
$ 20.15 |
