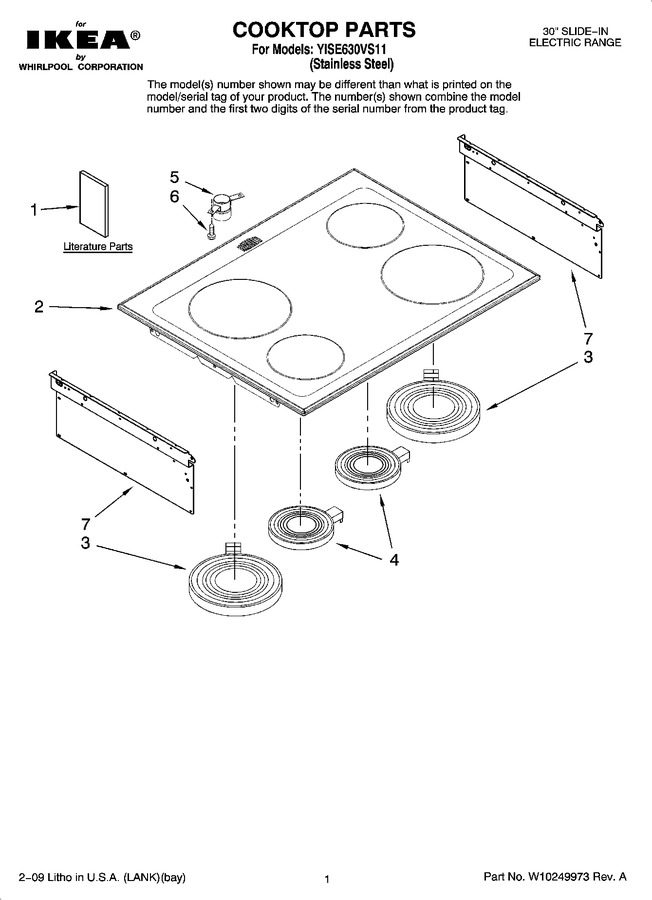

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184782 | Use & Care Guide |
|
- | |||||
| 1 | W10190681 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10190682 | Wiring Diagram (french) |
|
- | |||||
| 1 | W10203466 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 2 | W10197048 | Cooktop |
|
- | |||||
| 3 | W10823696 | Element Rf/lr (2500w) (Replaces: 74009034) |
|
Immediately | $ 192.83 | ||||
| 4 | W10823711 | Element Lf/rr (1200w) (Replaces: 74008568) |
|
Immediately | $ 183.95 | ||||
| 5 | 74005759 | Tube, Vent Upper |
|
- | |||||
| 6 | WP7101P498-60 | Screw (4) (Replaces: 74003357) |
|
$ 6.74 | |||||
| 7 | 74010821 | Panel, Sheild (left) |
|
- | |||||
| 7 | 74010822 | Panel, Sheild (right) |
|
- |
