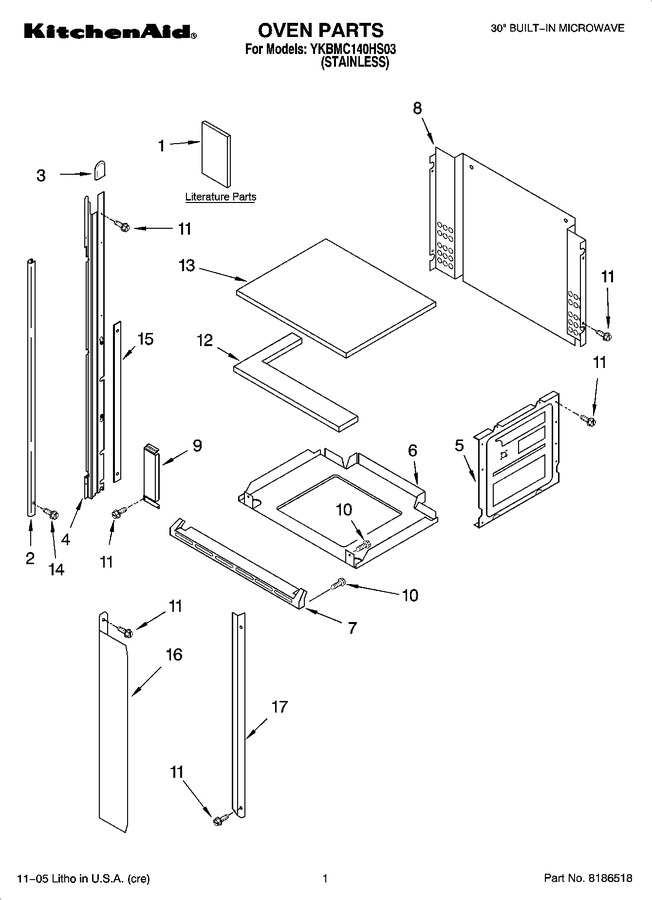

01 - Oven Parts
02 - Control Panel Parts
03 - Microwave Compartment Parts
04 - Cabinet And Stirrer Parts
05 - Top Venting Parts
06 - Microwave Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451052 | Chart, Hs Cook |
|
- | |||||
| 1 | 4452615 | Installation Instructions |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 1 | 4452614 | Use & Care Guide (english) |
|
- | |||||
| 1 | 4452618 | Use & Care Guide (french) |
|
- | |||||
| 1 | 4453330 | Cook Guide Label |
|
- | |||||
| 1 | 8302336 | Tech Sheet (english) |
|
- | |||||
| 1 | 8302337 | Tech Sheet (french) |
|
- | |||||
| 1 | 4449264 | Easy Set Guide (english) |
|
- | |||||
| 1 | 4448687 | Easy Set Guide (french) |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 4452556 | Trim, Side (rh Stainless) |
|
- | |||||
| 2 | 4452557 | Trim, Side (lh Stainless) |
|
- | |||||
| 3 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 4 | 4456546 | Rail, Side (left Side) |
|
- | |||||
| 4 | 4456545 | Rail, Side (right Side) |
|
- | |||||
| 5 | 4452559 | Side, Chassis (r.h. & L.h.) |
|
- | |||||
| 6 | 4456487 | Base, Chassis |
|
- | |||||
| 7 | 4456538 | Trim, Bottom |
|
- | |||||
| 8 | 4452554 | Chassis, Back |
|
- | |||||
| 9 | 4449906 | Extension Filler |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 11 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 12 | 4452492 | Insulation-grill |
|
- | |||||
| 13 | 4452491 | Insulation-top |
|
- | |||||
| 14 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 15 | 4455471 | Spacer, Rail (2) |
|
- | |||||
| 16 | 4455476 | Bracket |
|
- | |||||
| 17 | 4455475 | Bracket |
|
- |
