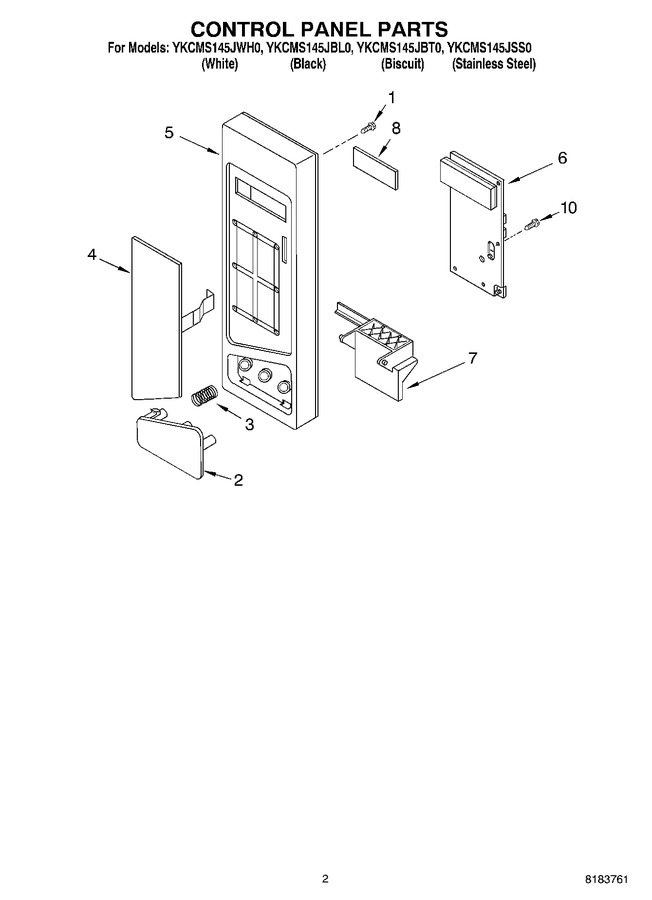

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358381 | Screw |
|
- | |||||
| 2 | 8172030 | Release Button (black) |
|
- | |||||
| 2 | 8172029 | Release Button (stainless) |
|
$ 24.18 | |||||
| 2 | 4359937 | Release Button (biscuit) |
|
- | |||||
| 2 | 8172028 | Release Button (white) |
|
- | |||||
| 3 | 4158178 | Spring, Button |
|
$ 5.83 | |||||
| 4 | 8183625 | Key Membrane (black) |
|
$ 137.13 | |||||
| 4 | 8183626 | Key Membrane (white) |
|
- | |||||
| 4 | 8183627 | Key Membrane (stainless) |
|
- | |||||
| 4 | 8183628 | Key Membrane (biscuit) |
|
$ 164.68 | |||||
| 5 | 4359850 | Control Panel (white) |
|
- | |||||
| 5 | 8205816 | Control Panel (stainless) |
|
- | |||||
| 5 | 4359939 | Control Panel (biscuit) |
|
- | |||||
| 5 | 4359851 | Control Panel (black) |
|
- | |||||
| 6 | 8183861 | Microcomputer |
|
- | |||||
| 7 | 4359718 | Lever, Release |
|
- | |||||
| 8 | 4359720 | Lens |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
