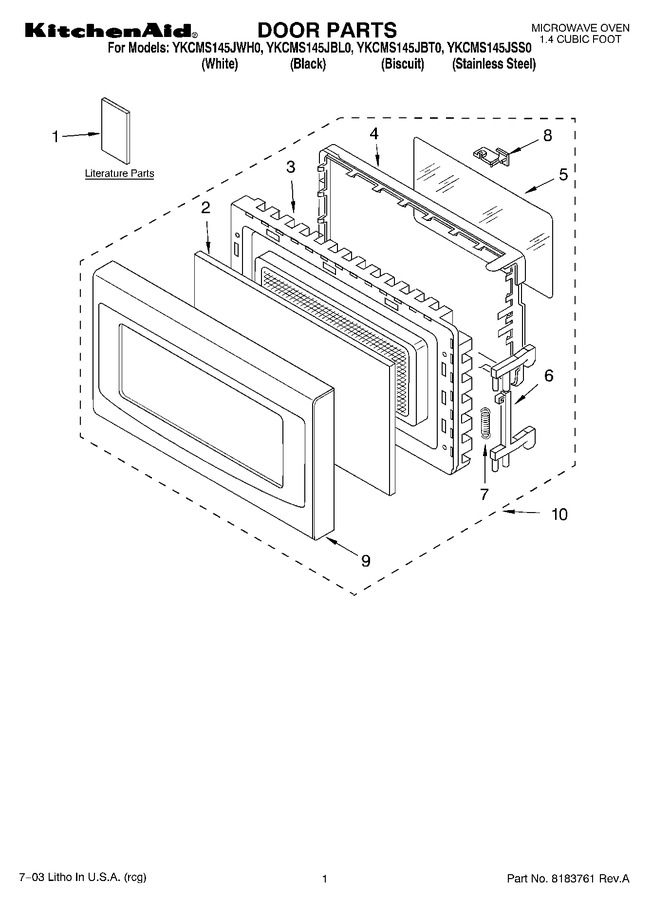

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8172188 | Literature Parts (use & Care Guide Cook Guide Label) |
|
- | |||||
| 1 | LIT8172202 | Literature Parts (english) |
|
- | |||||
| 1 | LIT8172203 | Literature Parts (french) |
|
- | |||||
| 1 | LIT8172211 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8172217 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8172220 | Literature Parts (template, B/i Kit) |
|
- | |||||
| 2 | 4359934 | Front Screen |
|
$ 11.12 | |||||
| 3 | 8172025 | Door Frame Assembly (biscuit) |
|
- | |||||
| 3 | 4359761 | Door Frame Assembly (black) |
|
- | |||||
| 3 | 8172024 | Door Frame Assembly (white) |
|
- | |||||
| 4 | 4359763 | Choke Cover |
|
- | |||||
| 5 | 4359764 | Tape, Seal |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 4359707 | Spring, Latch |
|
- | |||||
| 8 | 4359710 | Cap |
|
- | |||||
| 9 | 4359843 | Panel, Door (white) |
|
- | |||||
| 9 | 4359936 | Panel, Door (biscuit) |
|
- | |||||
| 9 | 4359844 | Panel, Door (black Stainless (not Serviced)) |
|
- | |||||
| 10 | 4359933 | Door Assembly (biscuit) |
|
- | |||||
| 10 | 4359840 | Door Assembly (white) |
|
- | |||||
| 10 | 4359841 | Door Assembly (black) |
|
- | |||||
| 10 | 4359839 | Door Assembly (stainless) |
|
- |
