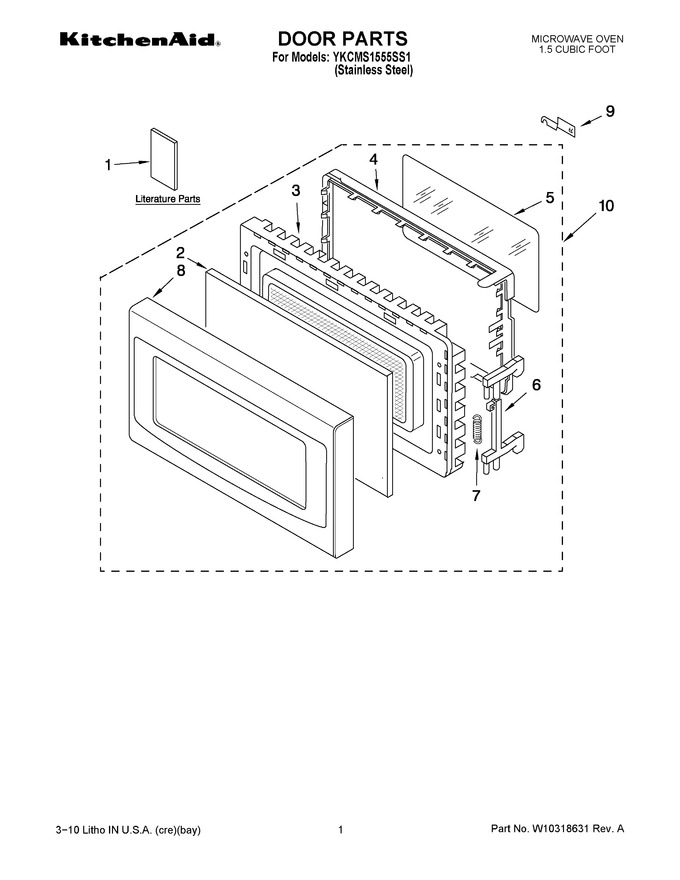

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165702 | Use & Care Guide |
|
- | |||||
| 1 | W10157920 | Cook Guide Label (english) |
|
- | |||||
| 1 | W10157921 | Cook Guide Label (french) |
|
- | |||||
| 1 | W10171957 | Tech Sheet |
|
- | |||||
| 1 | 8205554 | Instructions, Installation (for Trim Kit) |
|
- | |||||
| 2 | W10169263 | Front Screen |
|
- | |||||
| 3 | N/P | Frame Assembly (non-serviceable) |
|
- | |||||
| 4 | W10169266 | Choke Cover |
|
- | |||||
| 5 | W10169264 | Tape,seal |
|
$ 39.94 | |||||
| 6 | 8184263 | Latch |
|
$ 5.65 | |||||
| 7 | 8171918 | Spring, Latch |
|
$ 51.20 | |||||
| 8 | W10169314 | Panel, Door |
|
$ 132.47 | |||||
| 9 | 8184265 | Cap, Choke Cover |
|
- | |||||
| 10 | W10169312 | Door Assembly |
|
$ 315.12 |
