01 - Body
02 - Control Panel
03 - Door (ser. Pre. 15)
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

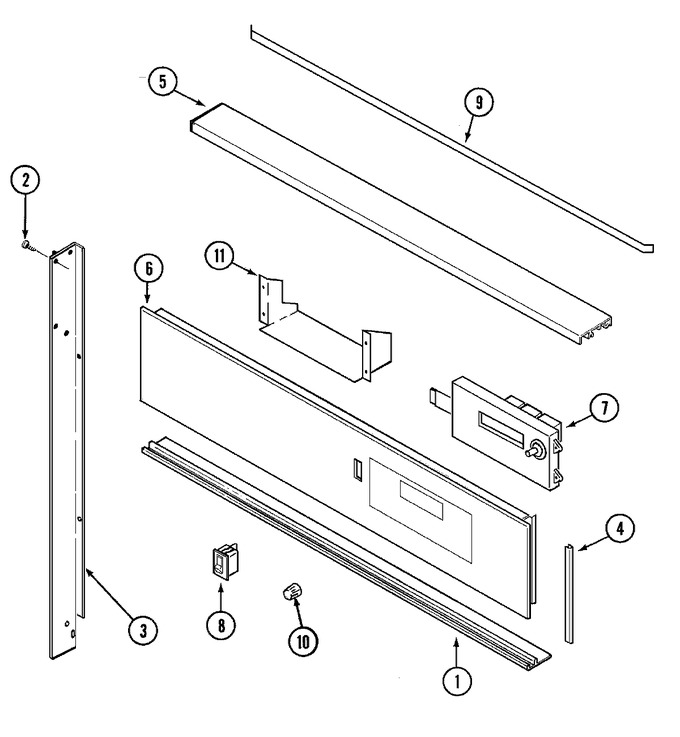

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P099-60 | Trim, Vent (chr) | 10 |
|
- | ||||
| 2 | WP98008544 | Screw (wht) (Replaces: 7101P308-60) | 10 |
|
$ 11.89 | ||||
| 3 | 74001392 | Extrusion, Side (lt-wht) | 14 |
|
- | ||||
| 3 | 7750P100-60 | Trim, Side (lt-wht) | 10 |
|
- | ||||
| 3 | 7750P099-60 | Trim, Side (rt-wht) | 10 |
|
- | ||||
| 3 | 74001390 | Extrusion, Side (rt-wht) | 14 |
|
- | ||||
| 4 | 7720P164-60 | Trim, Control Panel (wht) | 10 |
|
- | ||||
| 5 | 7756P101-60 | Trim, Top (wht) | 10 |
|
- | ||||
| 6 | 7721P048-60 | Panel, Control (wht) | 10 |
|
- | ||||
| 7 | 7601P233-60CP | Clock (Replaces: 7601P233-60) | 10 |
|
- | ||||
| 8 | 7403P200-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 9 | 7752P014-60 | Trim, Filler Strip (wht)----na | 10 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 74001670) | 10 |
|
$ 12.13 | ||||
| 11 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| 12 | 5170P207-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 12 | 5170D209-60 | Harness, Main | 10 |
|
- | ||||
| 13 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 13 | 74001388 | Screw (wht) | 10 |
|
- | ||||
| 13 | 74001393 | Spacer, Mtg. Adapter (wht) | 10 |
|
- | ||||
| 14 | 8113P056-60 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 14 | 8113P024-60 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
