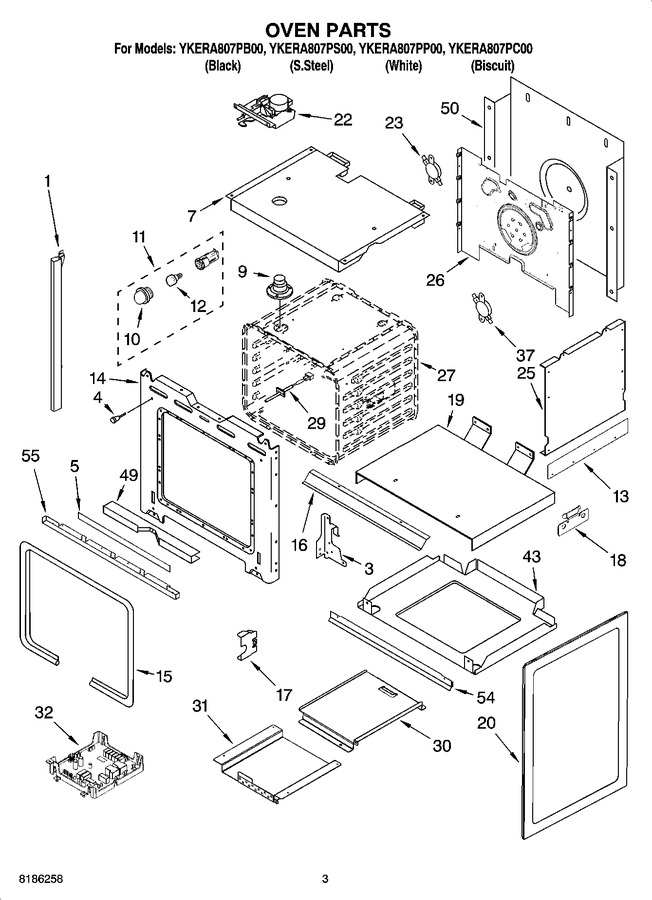

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9756619BL		Trim, Side (right Hand) (black)		Appelez-nous	-
1	9756619SS		Trim, Side (right Hand) (s.steel)		Appelez-nous	-
1	9756619WH		Trim, Side (right Hand) (white)		Appelez-nous	-
1	9756619BT		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
1	9756620BL		Trim, Side (left Hand) (black)		Appelez-nous	-
1	9756620SS		Trim, Side (left Hand) (s.steel)		Appelez-nous	-
1	9756620WH		Trim, Side (left Hand) (white)		Appelez-nous	-
1	9756620BT		Trim, Side (left Hand) (biscuit)		Appelez-nous	-
1	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
4	4448520		Bumper, Door				$ 19.07
5	9757717		Insulation, Bottom Vent		Appelez-nous	-
7	4455865		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 48.26
13	WP4449743		Screw (4)   (Replaces: 4449743)				$ 6.47
13	9757732		Shield, Heat		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 62.78
16	4453951		Deflector, Vent Bottom		Appelez-nous	-
17	4452152		Bracket, Mounting				$ 30.15
18	9757685		Guide, Side Panel				$ 36.23
19	4451478		Support, Insulation				$ 54.10
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	9781907PC		Body, Side (biscuit)		Appelez-nous	-
20	9781907PB		Body, Side (black)		Appelez-nous	-
20	9781907PW		Body, Side (white)		Appelez-nous	-
22	WPW10195934		Latch, Motorized   (Replaces: 8302474)			Immediately	$ 259.79
22	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
23	341196		Thermostat Spst (205)				$ 33.17
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 129.16
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	9759761		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
30	9756454		Bracket, Goc				$ 68.50
31	9756452		Slide. Goc		Appelez-nous	-
31	3179776		Screw		Appelez-nous	-
32	9759561		Central, Appliance				$ 400.41
37	WP9759242		Thermostat (tod) Manager   (Replaces: 4452223)			Immediately	$ 77.01
37	3179776		Screw (temp.) Spst		Appelez-nous	-
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
54	9756481WH		Vent, Bottom Upper (white)		Appelez-nous	-
54	9756481SS		Vent, Bottom Upper (s. Steel)		Appelez-nous	-
54	9756481BL		Vent, Bottom Upper (black)		Appelez-nous	-
54	9756481BT		Vent, Bottom Upper (biscuit)		Appelez-nous	-
55	9756485SS		Trim, Btm Vent (s.steel)		Appelez-nous	-
55	9756817		Insulation, Wrap				$ 76.03
55	9756470		Insulation, Back				$ 68.08
55	9756485BL		Vent, Bottom Lower (black)		Appelez-nous	-
55	9756485WH		Trim, Btm Vent (white)		Appelez-nous	-
55	9756485BT		Trim, Bottom Vent (biscuit)		Appelez-nous	-
