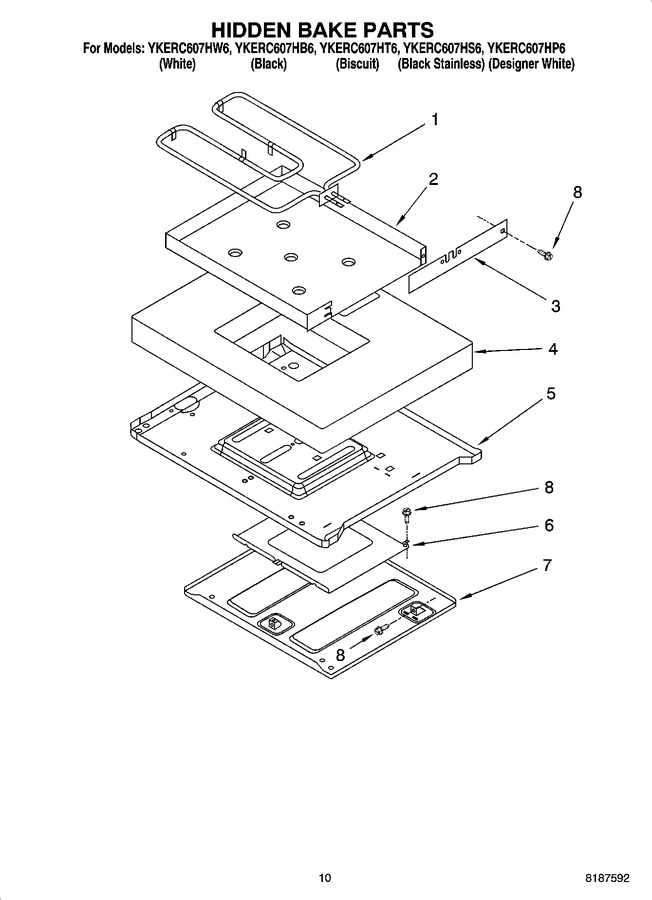

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | UB494 | Element, Bake (Replaces: 9752294) |
|
Immediately | $ 46.79 | ||||
| 2 | 9782048 | Pan, Hidden Bake |
|
- | |||||
| 3 | 9782049 | Cover, Hidden Bake |
|
- | |||||
| 4 | 9754005 | Insulation |
|
- | |||||
| 5 | 9752735 | Retainer, Insulation |
|
- | |||||
| 6 | 9782050 | Plate, Reflector |
|
- | |||||
| 7 | 9782051 | Shield |
|
- | |||||
| 8 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 9751750 | Harness, Wire (top Light) |
|
- | ||||||
| WA906B | Scraper (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| 9782080 | Harness, Wire (meat Probe) |
|
- | ||||||
| PT600 | Power Cord (Replaces: 9781287) |
|
Immediately | $ 44.31 | |||||
| WP90016 | Clip, Wire (Replaces: 90016) |
|
$ 10.19 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 46.30 | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 9753543 | Cooktop Cleaner |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 261582 | Grease |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 9782128 | Harness, Wire (main Harness) |
|
- | ||||||
| 9782183 | Harness, Wire (cooktop) |
|
- | ||||||
| 9781769 | Harness, Wire (ceran) |
|
- | ||||||
| 9750376 | Harness, Wire (oven Door) |
|
- | ||||||
| 9753374 | Harness, Wire (oven Light) |
|
- | ||||||
| 9782141 | Harness, Wire (control-canada) |
|
- | ||||||
| 9782142 | Harness, Wire (relay, Canada) |
|
- | ||||||
| 9781656 | L2 - Electric |
|
$ 83.95 | ||||||
| 9751868 | Grommet, Harness |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 9750984 | Cable Hanger |
|
- | ||||||
| WP98997 | Clip, Wire (Replaces: 98997) |
|
$ 9.98 | ||||||
| WPW10339879 | Tie, Wire (Replaces: 20082084) |
|
$ 7.11 | ||||||
| 9753683 | Harness, Wire (hidden Bake) |
|
- |
