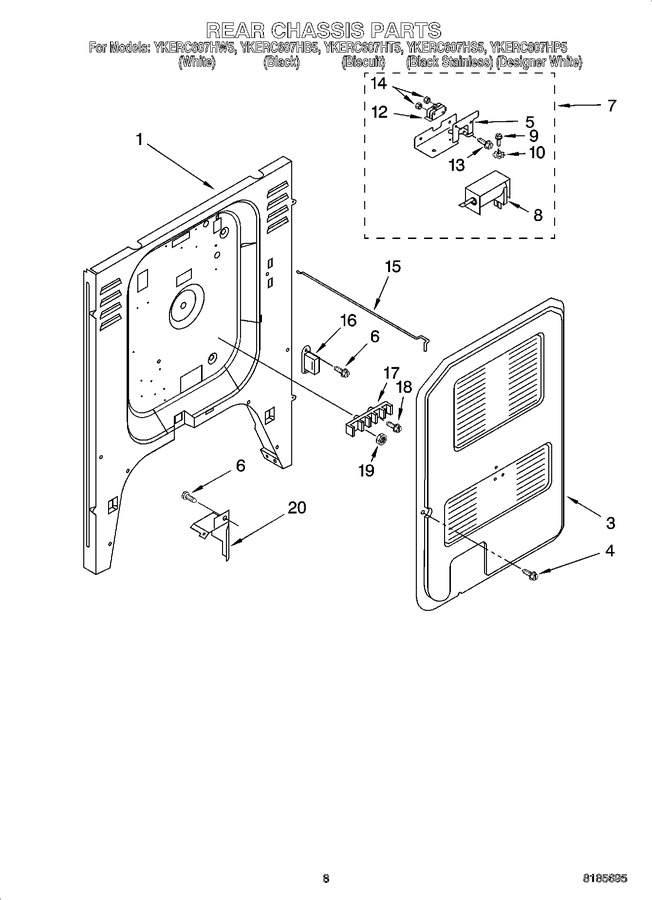

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9751051 Back Panel, Chassis Appelez-nous -
3 9751353 Panel, Rear Cover Appelez-nous -
4 423247 Screw, 10-16 X 3/8 Appelez-nous -
5 9751418 Bracket, Lock Appelez-nous -
6 9780265 Screw, 10-16 X 3/8 Appelez-nous -
7 9782104 Oven Lock Assembly Appelez-nous -
8 9751590 Solenoid Appelez-nous -
9 422222 Screw,10-32 X 5/16 Appelez-nous -
10 424238 Washer Appelez-nous -
12 9782106 Switch, Interloc Special Order $ 37.21

13 9750887 Screw, 4-40 X 1 Appelez-nous -
14 9750888 Nut Appelez-nous -
15 9750523 Rod, Lock Appelez-nous -
16 9780881 Ballast, Light Appelez-nous -
17 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

18 98884 Screw, 10-16 X 1 Appelez-nous -
19 WP681414 Screw, Grounding   (Replaces: 690989) In-Stock Immediately $ 7.07

19 WP112432 Nut, Hex   (Replaces: 112432) Special Order $ 7.16

19 313660 Clip, (1) Appelez-nous -
20 9751798 Vent Back, Oven Appelez-nous -
