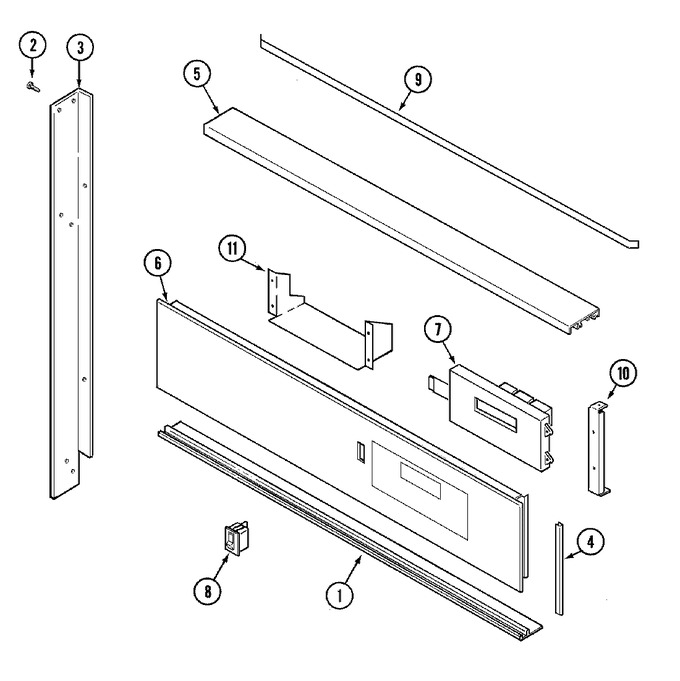

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P098-60 | Trim, Vent (blk) | 10 |
|
- | ||||
| 2 | WP98008544 | Screw (wht) (Replaces: 7101P308-60) | 10 |
|
$ 11.89 | ||||
| 3 | 74001389 | Extrusion, Side (rt-blk) | 10 |
|
- | ||||
| 3 | 74001391 | Extrusion, Side (lt-blk) | 10 |
|
- | ||||
| 3 | 71002697 | Extrusion, Side Trim (lt-blk) | 16 |
|
- | ||||
| 3 | 71002698 | Extrusion, Side Trim (rt-blk) | 16 |
|
- | ||||
| 4 | 7720P151-60 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 5 | 7756P100-60 | Trim, Top (blk) | 10 |
|
- | ||||
| 5 | 71002699 | Extrusion, Top Trim (blk) | 16 |
|
- | ||||
| 6 | 74002930 | Panel, Control (blk) | 10 |
|
- | ||||
| 7 | 74002862 | Clock (blk) | 10 |
|
- | ||||
| 7 | 74002859 | Overlay, Clock (blk) | 10 |
|
- | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 9 | 7752P010-60 | Trim, Filler Strip (blk) | 10 |
|
- | ||||
| 10 | 74002932 | Support, Clock | 10 |
|
- | ||||
| 11 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| 12 | 5170P207-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 12 | 5170D209-60 | Harness, Main | 10 |
|
- | ||||
| 13 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 13 | 74001387 | Screw (blk) | 10 |
|
- | ||||
| 13 | 74001394 | Spacer, Mtg. Adapter (blk) | 10 |
|
- | ||||
| 14 | 74002933 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
