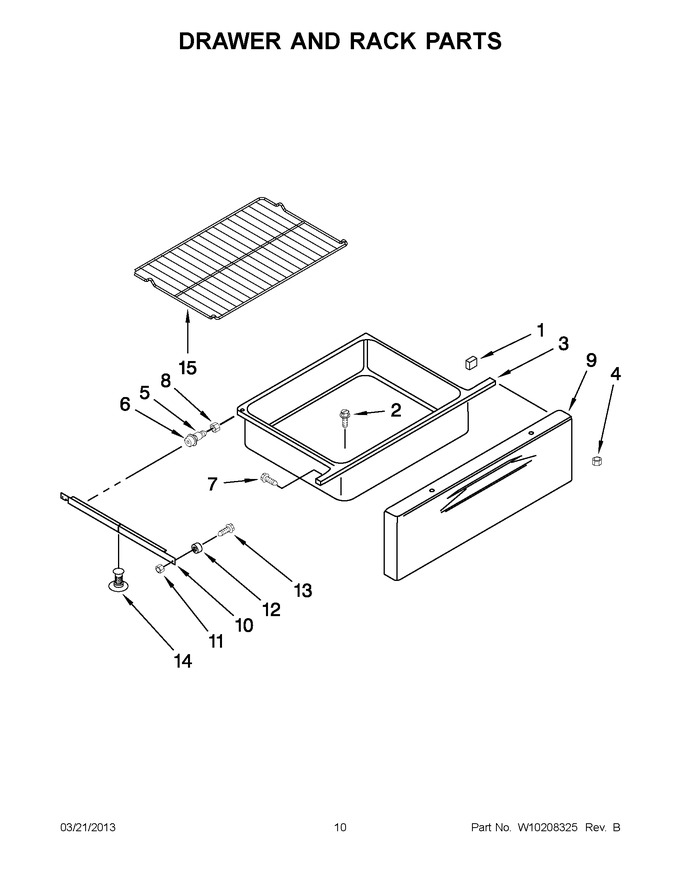

05 - Drawer And Rack Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8270P098-60 | Tape, Double Sided |
|
$ 5.02 | |||||
| 2 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) |
|
$ 6.77 | |||||
| 3 | WP3405F037-80 | Drawer, Storage (Replaces: 74008877) |
|
$ 304.98 | |||||
| 4 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) |
|
$ 4.00 | |||||
| 5 | WP74005546 | Spacer (Replaces: 74005546) |
|
$ 9.48 | |||||
| 6 | 74005231 | Shaft, Storage Drawer |
|
$ 9.23 | |||||
| 7 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 8 | WP488130 | Nut, Lock (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| 9 | W10163038 | Panel, Drawer (black) |
|
$ 18.28 | |||||
| 9 | W10163040 | Panel, Drawer (white) |
|
$ 26.62 | |||||
| 10 | 3406P034-51 | Rail, Drawer |
|
$ 33.42 | |||||
| 11 | 74005230 | Nut, Lock 8-32 |
|
$ 12.02 | |||||
| 12 | WP74004078 | Roller, Drawer (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | 74008688 | Stop, Drawer |
|
$ 5.02 | |||||
| 15 | WP74008763 | Rack,oven Standard (Replaces: 74008763) |
|
$ 192.14 |
