View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

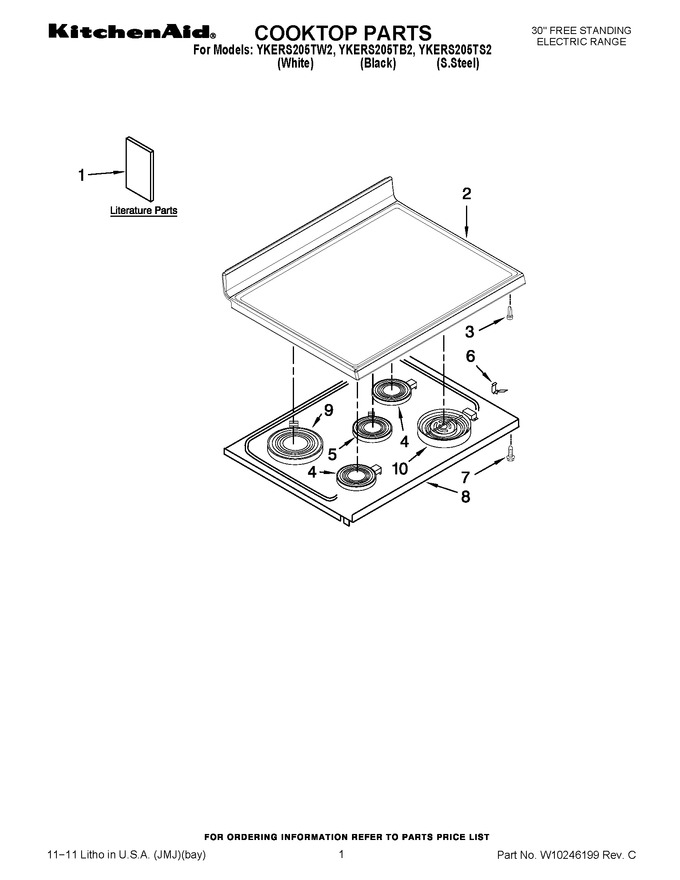

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168033 | Use & Care Guide |
|
- | |||||
| 1 | W10167998 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10167999 | Wiring Diagram (french) |
|
- | |||||
| 1 | W10185365 | Installation Instructions |
|
- | |||||
| 2 | W10275755 | Cooktop (black) |
|
$ 450.78 | |||||
| 2 | W10240342 | Cooktop (white) |
|
- | |||||
| 3 | 74008761 | Spacer Snap-in (4) (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | W10823711 | Element Lf/rr (2) (Replaces: 7406P365-60) |
|
Immediately | $ 183.95 | ||||
| 5 | WP9762851 | Element, Warm (Replaces: 9762851) |
|
Immediately | $ 248.88 | ||||
| 6 | 74007134 | Spring, Element (Replaces: 7803P087-60) |
|
$ 10.51 | |||||
| 7 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 12.62 | ||||
| 8 | 4011F497-51 | Bottom, Burner Box |
|
- | |||||
| 9 | W10823692 | Element Lr (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 10 | W10823720 | Element, Rf (Replaces: 7406P441-60) |
|
Immediately | $ 302.91 |
