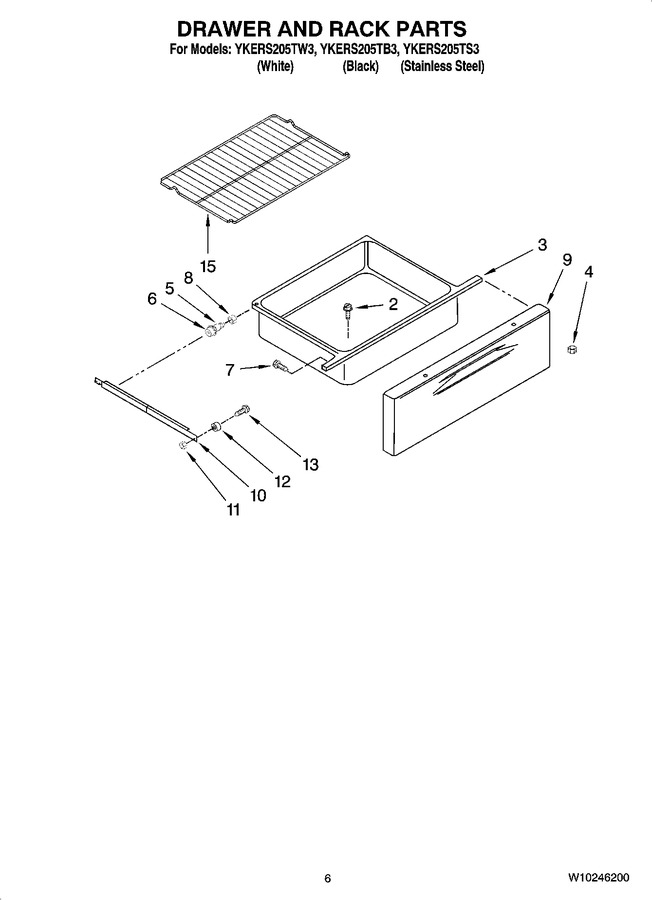

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP3196175 Screw (2)   (Replaces: 3196165) Special Order $ 6.47

3 3405W035-19 Drawer, Storage Special Order $ 78.41

4 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) Special Order $ 4.00

5 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 9.48

6 7118P032-60 Shaft, Roller Appelez-nous -
7 WP3196175 Screw   (Replaces: 3196165) Special Order $ 6.47

8 WP488130 Nut   (Replaces: 7103P082-60) Special Order $ 6.27

9 W10163038 Panel, Drawer (black) Special Order $ 18.28

9 W10163040 Panel, Drawer (white) Special Order $ 26.62

10 8016P024-60 Runner, Drawer Special Order $ 43.19

11 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) Special Order $ 4.00

12 WP74004078 Roller, Drawer   (Replaces: 8014P022-60) In-Stock Immediately $ 10.70

13 7118P032-60 Shaft, Roller Appelez-nous -
15 W11520287 Rack, Oven   (Replaces: W10179196) In-Stock Immediately $ 42.16


    View Diagram in Separate Window     Print Icon   Print Part List
