SELECT A DIAGRAM

01 - Cooktop Parts

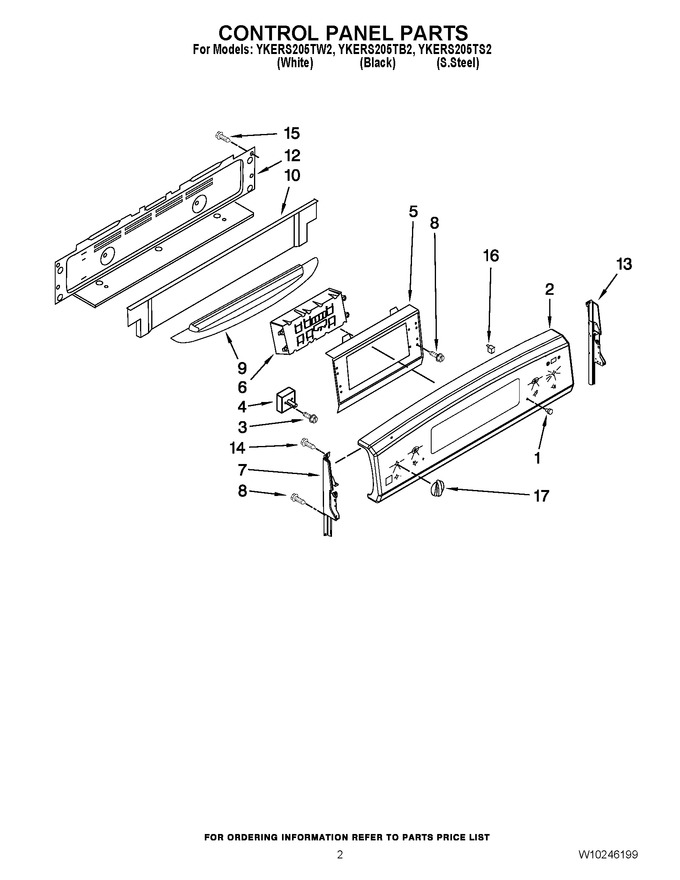

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196068		Lens   (Replaces: 3196068)			Immediately	$ 5.63
2	W10218268		Panel, Backguard Assy (white)		Appelez-nous	-
2	W10218267		Panel, Backguard Assy (stainless Steel)				$ 252.90
2	W10218266		Panel, Backguard Assy (black)		Appelez-nous	-
3	WP7101P309-60		Screw, Switch (10)   (Replaces: 7101P309-60)			Immediately	$ 6.26
4	WP74008940		Switch, Infinte (low Heat)   (Replaces: 7403P877-60)			Immediately	$ 125.54
4	WP7403P238-60		Switch, Infinte (lf/rr (2))   (Replaces: 7403P373-60)			Immediately	$ 57.78
4	7405P011-60		Switch, Infinte (dual Rf/lr (2))		Appelez-nous	-
5	3801F945-51		Bracket, Control				$ 53.75
6	8507P331-60		Control				$ 345.77
7	3807F703-70		End Cap, Left (black)		Appelez-nous	-
7	3807F703-71		End Cap, Left (white)		Appelez-nous	-
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
9	3604F382-09		Shield, Heat Visor (black)				$ 50.83
9	3604F382-81		Shield, Heat Visor (white)				$ 32.49
10	3604F381-19		Shield, Vent				$ 31.31
12	4005F804-51		Cover, Rear Wire				$ 30.01
13	3807F702-71		End Cap, Right (white)		Appelez-nous	-
13	3807F702-70		End Cap, Right (black)		Appelez-nous	-
14	31961786-60		Screw		Appelez-nous	-
15	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
16	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.02
17	WPW10160368		Knob (4) (white)   (Replaces: W10160368)			Immediately	$ 19.69
17	WPW10160371		Knob (4) (s.steel)   (Replaces: W10160371)			Immediately	$ 40.67
17	WPW10160370		Knob (4) (black)   (Replaces: W10160370)				$ 19.23

    View Diagram in Separate Window       Print Part List
