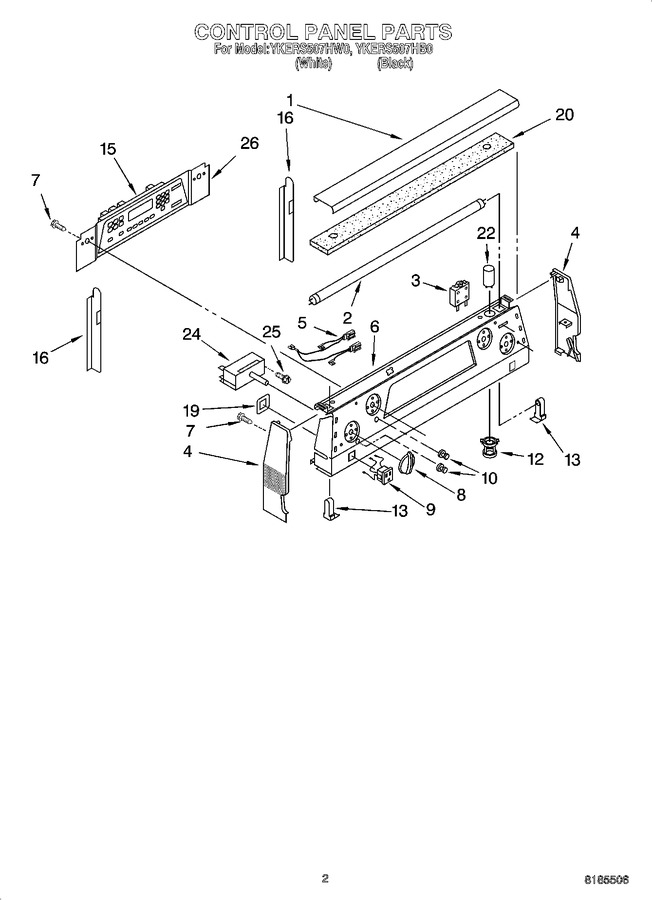

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9753156PW | Lamp Cover (white) |
|
- | |||||
| 1 | 9753156PB | Lamp Cover (black) |
|
- | |||||
| 2 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 121.45 | ||||
| 3 | 3191072 | Breaker, 15 Amp |
|
- | |||||
| 4 | 9750367FW | End Cap (right Hand) (white) |
|
- | |||||
| 4 | 9750367FB | End Cap (right Hand) (black) |
|
- | |||||
| 4 | 9750366FW | End Cap (left Hand) (white) |
|
- | |||||
| 4 | 9750366FB | End Cap (left Hand) (black) |
|
- | |||||
| 5 | 9753422 | Indicator |
|
- | |||||
| 6 | 9754256PW | Panel, Control (white) |
|
- | |||||
| 6 | 9754256PB | Panel, Control (black) |
|
- | |||||
| 7 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 7 | 9754008 | Insulation |
|
- | |||||
| 8 | WP9750372FW | Knobs, Control (4) (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 8 | WP9750372FF | Knobs, Control (4) (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 9 | 9751480FW | Outlet, Untimed (white) |
|
- | |||||
| 9 | 9751480FB | Outlet, Untimed (black) |
|
- | |||||
| 10 | WP9750343 | Indicator Lens (Replaces: 9752589) |
|
Immediately | $ 5.14 | ||||
| 12 | 9750866 | Starter, Holder |
|
- | |||||
| 13 | 9752760 | Receptacle, Light |
|
- | |||||
| 15 | 9753667CW | Oven Control (white) |
|
- | |||||
| 15 | 9753667CB | Oven Control (black) |
|
- | |||||
| 16 | 9780655 | Brace, Control Pnl |
|
- | |||||
| 19 | 9751046 | Support, Outlet |
|
- | |||||
| 20 | 9750995 | Insulation |
|
- | |||||
| 22 | 9781118 | Starter, Light |
|
- | |||||
| 24 | WP9750638 | Infinite Switch (1250/1500w, (2)) (Replaces: 9750638) |
|
Immediately | $ 102.50 | ||||
| 24 | WP9750641 | Infinite Switch (2100/2600w, (2)) (Replaces: 9750641) |
|
Immediately | $ 92.72 | ||||
| 25 | WP3400882 | Screw, 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 6.47 | ||||
| 26 | 9780655 | Bracket, Timer |
|
- |
