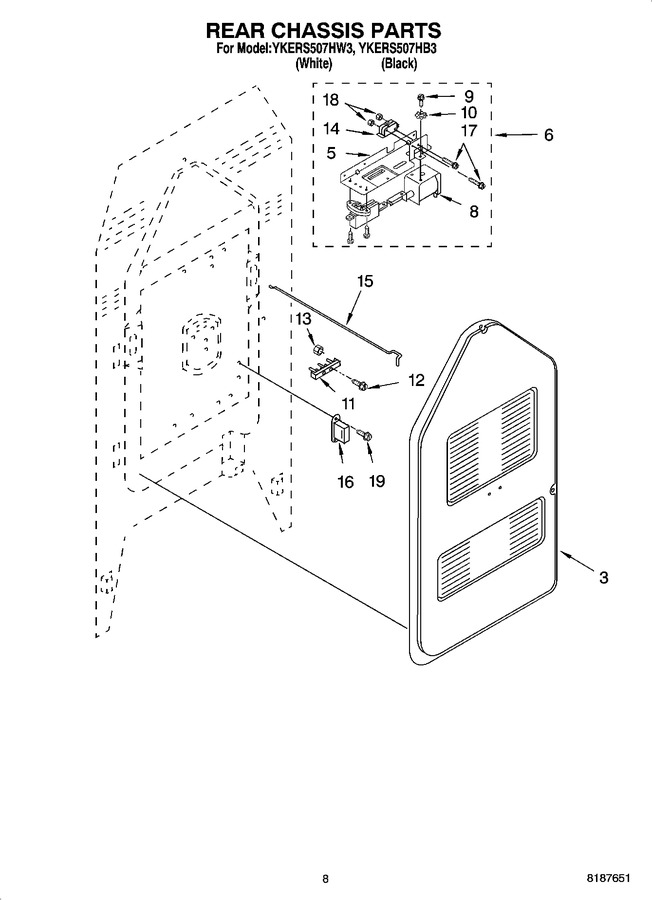

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 9750150 | Rear Panel |
|
- | |||||
| 5 | 9750526 | Bracket, Lock |
|
- | |||||
| 6 | 9752404 | Oven Lock Assembly |
|
- | |||||
| 8 | 9752409 | Solenoid |
|
- | |||||
| 9 | 422222 | Screw (2) |
|
- | |||||
| 10 | 424238 | Washer (2) |
|
- | |||||
| 11 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 12 | 98884 | Screw |
|
- | |||||
| 13 | WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | |||||
| 14 | 9750965 | Switch, Interlock |
|
$ 72.00 | |||||
| 15 | 9750523 | Rod, Lock |
|
- | |||||
| 16 | 9780881 | Ballast, Lamp |
|
- | |||||
| 17 | 9750887 | Screw, (2) |
|
- | |||||
| 18 | 9750888 | Nut |
|
- | |||||
| 19 | 9780265 | Screw |
|
- |
