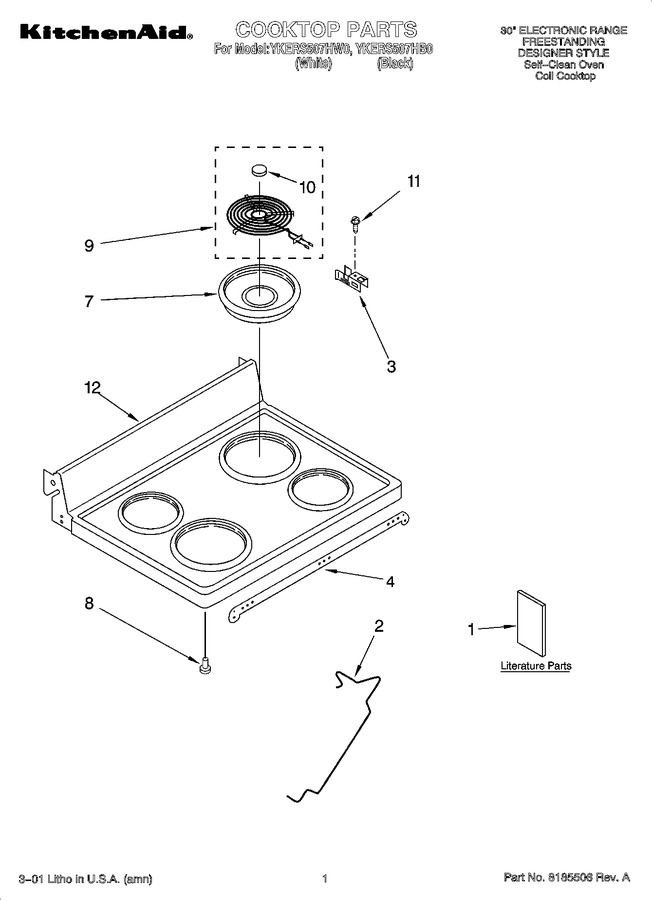

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Rear Chassis Parts


07 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9753843		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT9753843F		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT9753688		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT4449264		Literature Parts (smart & Easy Guide (english))		Appelez-nous	-
1	LIT4448687		Literature Parts (smart & Easy Guide (french))		Appelez-nous	-
1	LIT3190440		Literature Parts (instruction Label (lamp Cover))		Appelez-nous	-
1	LIT9752777		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
2	9751538		Cooktop, Rod (2)		Appelez-nous	-
3	9781324		Receptacle Clip		Appelez-nous	-
4	9780585		Wire Guard				$ 35.21
7	WPW10290350		Ring Bowl (8``)   (Replaces: 3169205)			Immediately	$ 15.25
7	W10290353RW		Ring Bowl (6``)   (Replaces: 3169204)			Immediately	$ 19.27
8	238614		Bumper, Rubber (2)   (Replaces: 9750969)				$ 72.68
9	PS26-4BK		Element, Surface (coil, 8`` Lf-rr)   (Replaces: 9781325)			Immediately	$ 40.46
9	9781327		Element, Surface (coil, 6`` Lr (accu-simmer))		Appelez-nous	-
9	WPW10259868		Element, Surface (coil, 6`` Rf)   (Replaces: 9781326)			Immediately	$ 112.28
10	4211986		Medallion, (1) (accu-simmer)		Appelez-nous	-
10	4211952		Medallion, (3)		Appelez-nous	-
11	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
12	9781989GB		Cooktop, Coil (black)		Appelez-nous	-
12	9781989GW		Cooktop, Coil (white)		Appelez-nous	-
