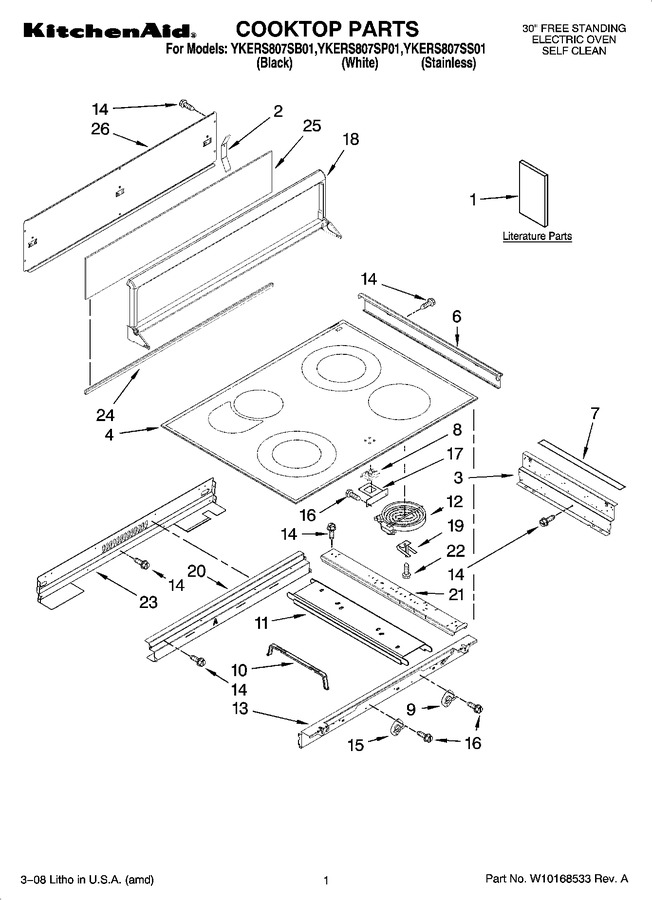

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10118260 | Installation Instructions |
|
- | |||||
| 1 | W10162196 | Use & Care Guide (english) |
|
- | |||||
| 1 | W10162197 | Use & Care Guide (french) |
|
- | |||||
| 1 | W10112097 | Tech Sheet (english) |
|
- | |||||
| 1 | W10112098 | Tech Sheet (french) |
|
- | |||||
| 1 | 9763467 | Easy Set Guide |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | 9762768 | Clip, Retainer (3) |
|
$ 38.30 | |||||
| 3 | 9761784 | Frame, Cooktop Side |
|
- | |||||
| 4 | W10110276 | Cooktop (black/stainless) |
|
- | |||||
| 4 | W10110274 | Cooktop (white) |
|
- | |||||
| 6 | W10110687 | Trim, Cooktop Right (black) |
|
$ 187.68 | |||||
| 6 | W10140549 | Trim, Cooktop Left (stainless) |
|
$ 121.97 | |||||
| 6 | W10110680 | Trim, Cooktop Left (white) |
|
$ 191.25 | |||||
| 6 | W10110682 | Trim, Cooktop Left (black) |
|
$ 189.56 | |||||
| 6 | W10140550 | Trim, Cooktop Right (stainless) |
|
$ 116.16 | |||||
| 6 | W10110685 | Trim, Cooktop Right (white) |
|
$ 200.89 | |||||
| 7 | W10076030 | Gasket (2) |
|
$ 78.51 | |||||
| 8 | 8523739 | Light, Indicator |
|
$ 120.71 | |||||
| 9 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | 9757825 | Rail, Element (center (1)) |
|
- | |||||
| 12 | W10823692 | Element, Surface (lf, Rr) (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 12 | W10823698 | Element, Surface (rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 12 | 4456507 | Element, Surface (lr) |
|
- | |||||
| 13 | 9761423 | Frame, Cooktop Front |
|
$ 43.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 341196 | Thermostat |
|
$ 33.17 | |||||
| 16 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 17 | 9758799 | Bracket, Indicator Lamp |
|
$ 47.83 | |||||
| 18 | W10109750 | Backsplash (black) |
|
$ 96.30 | |||||
| 18 | W10109740 | Backsplash (white) |
|
$ 90.41 | |||||
| 18 | W10156267 | Backsplash (stainless) |
|
$ 112.79 | |||||
| 19 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 20 | 9761783 | Frame, Cooktop Rear |
|
- | |||||
| 21 | 9763517 | Rail, Element (3) |
|
$ 62.80 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 23 | 9761724 | Cover, Cooktop Rear |
|
$ 35.73 | |||||
| 24 | 9763483BL | Gasket, Backsplash (black/stainless) |
|
$ 104.52 | |||||
| 24 | 9763483GY | Gasket, Backsplash (white) |
|
$ 47.90 | |||||
| 25 | 9761749BL | Glass, Backsplash (black/stainless) |
|
$ 142.53 | |||||
| 25 | 9761749WH | Glass, Backsplash (white) |
|
$ 164.35 | |||||
| 26 | W10153092 | Panel, Backsplash |
|
$ 41.78 |
