01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

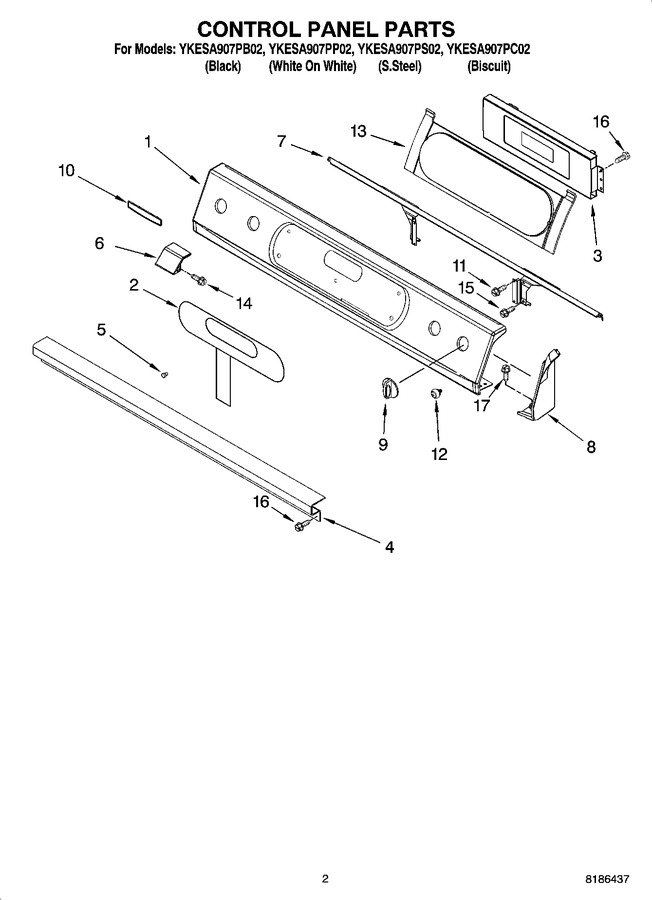

| 1 | 4453826WH | Control Panel (white) |
|
$ 130.70 | |||||
| 1 | 4453826SS | Control Panel (s.steel) |
|
$ 140.48 | |||||
| 1 | 4453826BL | Control Panel (black) |
|
$ 155.03 | |||||
| 1 | 4453826BT | Control Panel (biscuit) |
|
$ 130.76 | |||||
| 2 | 9756595WH | Membrane Switch (white) |
|
$ 212.53 | |||||
| 2 | WP9756595ES | Membrane Switch (s.steel) (Replaces: 9756595ES) |
|
Immediately | $ 438.73 | ||||
| 2 | 9756595BL | Membrane Switch (black) |
|
$ 216.30 | |||||
| 2 | 9756595BT | Membrane Switch (biscuit) |
|
$ 222.42 | |||||
| 3 | 9762812 | Control, Interface |
|
$ 482.81 | |||||
| 4 | 9757119 | Bracket, Console |
|
- | |||||
| 5 | WP3196068 | Lens, Ind. (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 6 | 9759467 | Insert, Console (l.hand) |
|
- | |||||
| 6 | 9759466 | Insert, Console (r.hand) |
|
- | |||||
| 7 | 9757787 | Bracket, User Interface |
|
- | |||||
| 8 | 9760456WH | Endcap (white Rh) |
|
- | |||||
| 8 | 9760457WH | Endcap (white Lh) |
|
- | |||||
| 8 | 9760457BL | Endcap (black Lh) |
|
- | |||||
| 8 | 9760457CM | Endcap (s.steel Lh) |
|
- | |||||
| 8 | 9760456BL | Endcap (black Rh) |
|
- | |||||
| 8 | 9760456CM | Endcap (s.steel) |
|
- | |||||
| 8 | 9760457BT | Endcap (biscuit Lh) |
|
- | |||||
| 8 | 9760456BT | Endcap (biscuit Rh) |
|
- | |||||
| 9 | 9756942 | Knob (biscuit) |
|
$ 67.41 | |||||
| 9 | 9756941 | Knob (white) |
|
$ 23.82 | |||||
| 9 | 9756944 | Knob (s.steel) |
|
$ 37.52 | |||||
| 9 | 9756943 | Knob (black) |
|
$ 20.88 | |||||
| 10 | 4453107 | Nut |
|
- | |||||
| 10 | 9757730BL | Nameplate (black) |
|
- | |||||
| 10 | 9757730BT | Nameplate (biscuit) |
|
- | |||||
| 10 | 9757730WH | Nameplate (white) |
|
- | |||||
| 11 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 12 | 9757778 | Bushing |
|
$ 83.68 | |||||
| 13 | 9759827 | Insert, Membrane |
|
- | |||||
| 14 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 15 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 16 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 17 | 3196172 | Screw |
|
Immediately | $ 11.55 |
