01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Rear Chassis Parts, Miscellaneous Parts

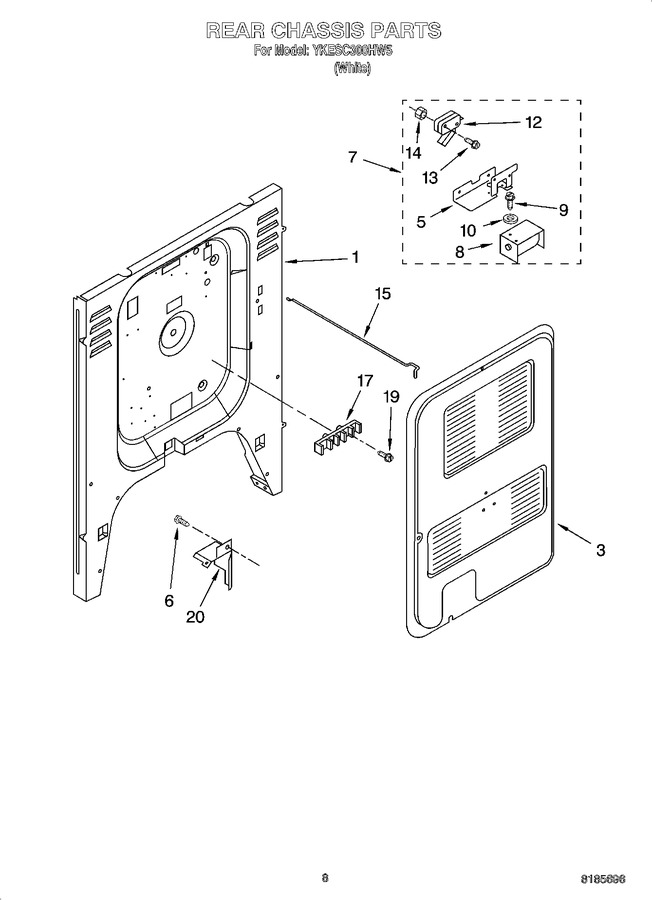

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751051		Rear, Chassis		Appelez-nous	-
3	9751353		Panel, Rear Cover		Appelez-nous	-
5	9751418		Bracket, Lock		Appelez-nous	-
6	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
7	9782104		Oven Lock Assembly		Appelez-nous	-
8	9751590		Solenoid		Appelez-nous	-
9	422222		Screw,10-32 X 5/16		Appelez-nous	-
10	424238		Washer, Lock 10		Appelez-nous	-
12	9782106		Switch, Interloc				$ 37.21
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
19	98884		Screw, 10-16 X 1		Appelez-nous	-
20	9751798		Vent, Back		Appelez-nous	-
	WP90016		Clip, Wire   (Replaces: 90016)				$ 10.19
	WA906B		Scraper   (Replaces: 3183488)			Immediately	$ 4.86
	9781769		Harness, Wire (console)		Appelez-nous	-
	9750376		Harness, Wire (door Switch)		Appelez-nous	-
	9782141		Harness, Wire (ceran Control)		Appelez-nous	-
	9782142		Harness, Wire (relay, Canada)		Appelez-nous	-
	PT600		Power Cord   (Replaces: 9781287)			Immediately	$ 44.31
	9750984		Wire Hanger		Appelez-nous	-
	WPW10339879		Tie, Wire   (Replaces: 20082084)				$ 7.11
	9751868		Grommet, Harness		Appelez-nous	-
	313660		Clip, Ground Wire		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 46.30
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	WP681414		Screw, Ground   (Replaces: 690989)			Immediately	$ 7.07
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	261888		Paint, Pressurized Spray (12 Oz.) (new Avocado)		Appelez-nous	-
	261886		Paint, Pressurized Spray (12 Oz.) (coffee)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	261890		Paint, Pressurized Spray (12 Oz.) (harvest Gold)		Appelez-nous	-
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 80.69
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	261891		Paint, Bulk (1 Qt.) (harvest Gold (uncut))		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
	9754000		Insulation, Wrap		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	9754011		Insulation, Rear		Appelez-nous	-
	CERAMABRYTE		Glass Cleaner   (Replaces: 9780196)			Immediately	$ 9.95
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	261582		Grease		Appelez-nous	-
	9751745		Anti-tip Kit				$ 19.35
	9752954		Harness, Wire (si/main/nc)		Appelez-nous	-
	9781655		Harness, Wire (l2 Electric)		Appelez-nous	-
	9781932		Harness, Wire (cooktop)		Appelez-nous	-
