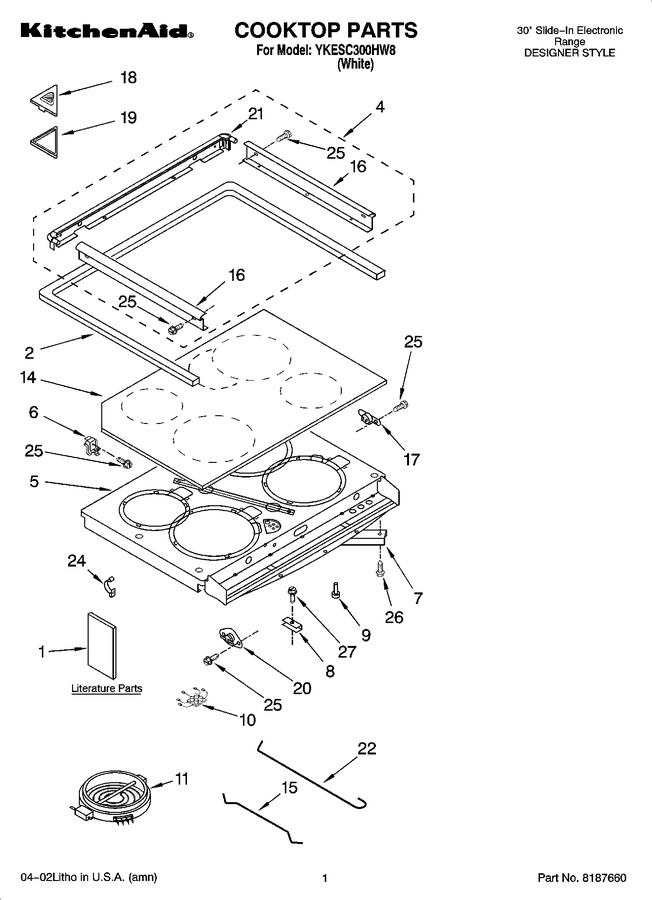

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts
06 - Rear Chassis Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9754365 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT9754287 | Use & Care Guide (english) |
|
- | |||||
| 1 | LIT9754287F | Use & Care Guide (french) |
|
- | |||||
| 1 | LIT9755236 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT9754373 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT9752775 | Literature Parts (template, Anti-tip) |
|
- | |||||
| 2 | 9754103 | Gasket, Cooktop (front & Sides) |
|
$ 53.36 | |||||
| 4 | 9781831PW | Frame, Cooktop |
|
- | |||||
| 5 | 9752892 | Support, Element |
|
- | |||||
| 6 | 9752003 | Washer, Pivot |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9753691 | Support Bracket |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9781936 | Hot Light |
|
- | |||||
| 11 | W10823697 | Element, Surface (2200w - Rr) (Replaces: 8523694) |
|
$ 326.21 | |||||
| 11 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8523693) |
|
Immediately | $ 204.83 | ||||
| 11 | W10823699 | Element, Surface (1500w - Lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 11 | W10823698 | Element, Surface (1800w - Rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 14 | 9753711CW | Cooktop, Ceran |
|
- | |||||
| 15 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 16 | 9781828PW | Trim, Side |
|
- | |||||
| 17 | 9780265 | Screw (2) |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751800 | Vent, Cover |
|
- | |||||
| 19 | 9751841 | Gasket, Vent |
|
- | |||||
| 20 | WP9759944 | Bimetal, Fan (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 21 | 9781831PW | Trim, Back (includes End Caps) |
|
- | |||||
| 22 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 24 | WP98997 | Clip, Wire (Replaces: 98997) |
|
$ 9.98 | |||||
| 25 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 26 | 9780272 | Screw, 10-16 X 1/2 |
|
- | |||||
| 27 | 9751871 | Screw, 10-16 X 1 |
|
- |
