Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9751051 Back Panel, Chassis Appelez-nous -
3 9751353 Panel, Rear Cover Appelez-nous -
4 423247 Screw Appelez-nous -
7 9782610 Oven Lock Assembly Appelez-nous -
11 9782330 Block, Balance Appelez-nous -
12 9782106 Switch, Interlock Special Order $ 37.21

13 9750887 Screw, 4-40 X 1 Appelez-nous -
14 9750888 Nut Appelez-nous -
15 9750523 Rod, Lock Appelez-nous -
17 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

17 313660 Clip Appelez-nous -
19 9751798 Back, Vent Appelez-nous -
21 9780272 Screw, 10-16 X 1/2 Appelez-nous -
24 98884 Screw, 10-16 X 1 Appelez-nous -
25 WP112432 Nut, 10-32 Hex   (Replaces: 112432) Special Order $ 7.16


    View Diagram in Separate Window     Print Icon   Print Part List

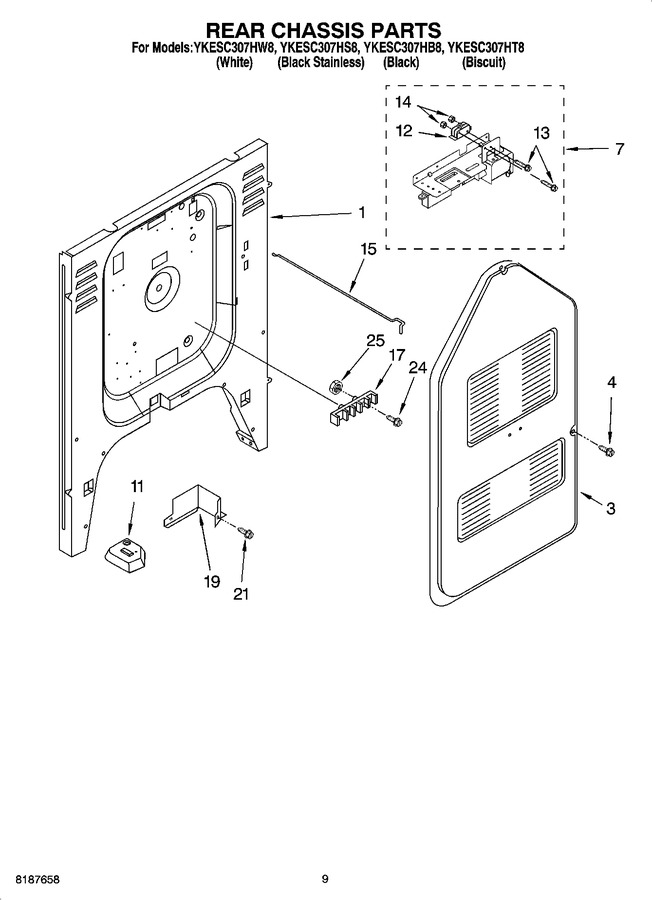

Diagram for YKESC307HW8
