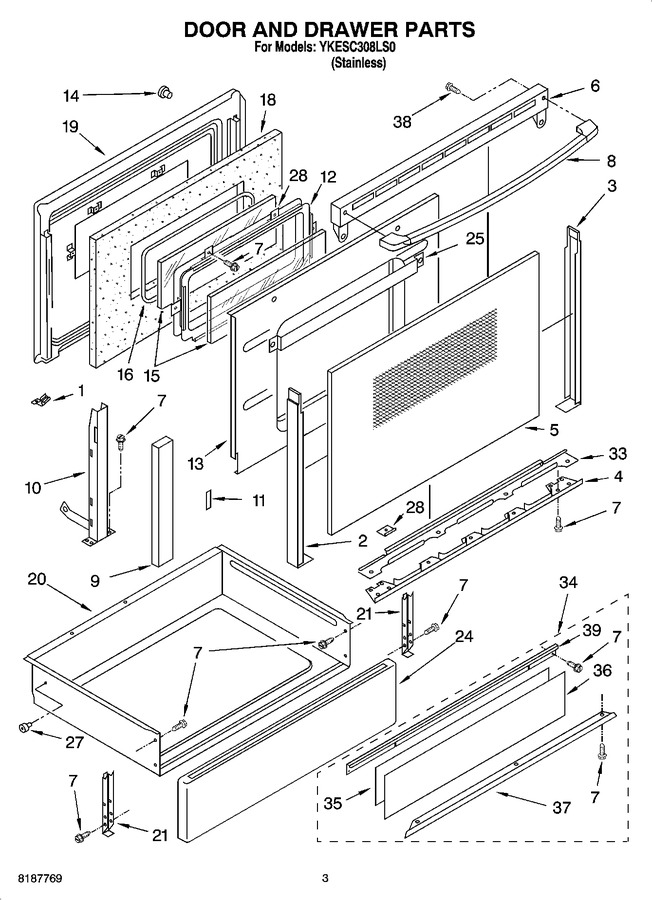

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Rear Chassis Parts


07 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750676		Support, Door		Appelez-nous	-
2	9782003PB		Trim, Door-left		Appelez-nous	-
3	9782004PB		Trim, Door-right		Appelez-nous	-
4	9781209PB		Trim, Door Bottom		Appelez-nous	-
5	9754041		Glass, Door		Appelez-nous	-
6	9755588GB		Vent, Door		Appelez-nous	-
7	9781659		Gasket, Door Vent		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9755597S		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass (4)		Appelez-nous	-
10	WP90296		Clip   (Replaces: 90296)				$ 7.07
10	WP9782033		Hinge, Door R Or L   (Replaces: 9782033)			Immediately	$ 208.67
11	9781490		Seal		Appelez-nous	-
12	9781602		Frame, Window		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 72.68
15	WP9781593		Glass, Door (2)   (Replaces: 9781593)				$ 116.35
16	9755177		Seal, Glass				$ 76.91
18	9754006		Insulation		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
24	9782109PB		Front, Drawer		Appelez-nous	-
25	9750693		Heat Channel		Appelez-nous	-
27	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
28	9781502		Spacer, Door (8)		Appelez-nous	-
33	9781771		Deflector, Steam		Appelez-nous	-
34	9750614PB		Black Stainless Only		Appelez-nous	-
35	9753329		Spacer		Appelez-nous	-
36	9754062		Panel, Drawer (stainless)		Appelez-nous	-
37	9750613PB		Trim, Drawer-bot		Appelez-nous	-
38	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
39	9750614PB		Trim, Drawer-top		Appelez-nous	-
