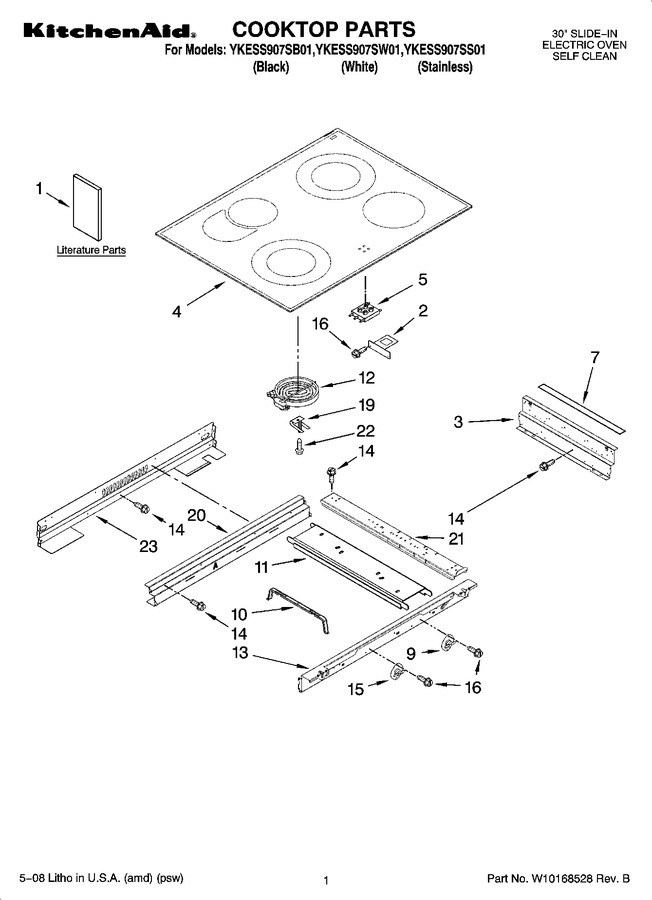

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Control Panel Parts


06 - Internal Oven Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	W10118260		Installation Instructions		Appelez-nous	-
1	W10118258		Use & Care Guide (english)		Appelez-nous	-
1	W10118259		Use & Care Guide (french)		Appelez-nous	-
1	W10112097		Tech Sheet (english)		Appelez-nous	-
1	W10112098		Tech Sheet (french)		Appelez-nous	-
1	9763467		Easy Set Guide		Appelez-nous	-
1	9757680		Anti-tip Instructions		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
2	9758799		Bracket, Indicator Light				$ 47.83
3	9761422		Frame, Cooktop Side				$ 67.87
4	W10110269		Cooktop (white)		Appelez-nous	-
4	W10297306		Cooktop (black/stainless)   (Replaces: W10110271)				$ 911.43
5	8523739		Indicator Lamp, Hot Surface				$ 120.71
7	W10076030		Gasket (2)				$ 78.51
9	WP9759944		Thermostat   (Replaces: 9759944)			Immediately	$ 121.57
10	9756821		Support, Wiring		Appelez-nous	-
11	9757825		Rail, Element (center (1))		Appelez-nous	-
12	W10823692		Element, Surface (lf/rr, 2500/1200w)   (Replaces: 4453909)			Immediately	$ 204.83
12	W10823698		Element, Surface (rf/1800w)   (Replaces: 8523696)			Immediately	$ 175.61
12	8203525		Element, Surface (lr,1800/1000w)		Appelez-nous	-
13	9761423		Frame, Cooktop Front				$ 43.33
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	341196		Thermostat				$ 33.17
16	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
19	9759094		Spring, Locator				$ 6.34
20	9761768		Frame, Cooktop Rear				$ 73.35
21	9763517		Rail, Element (2)				$ 62.80
22	WP486754		Screw   (Replaces: 246119)				$ 6.75
23	9761724		Cover, Cooktop Rear				$ 35.73
