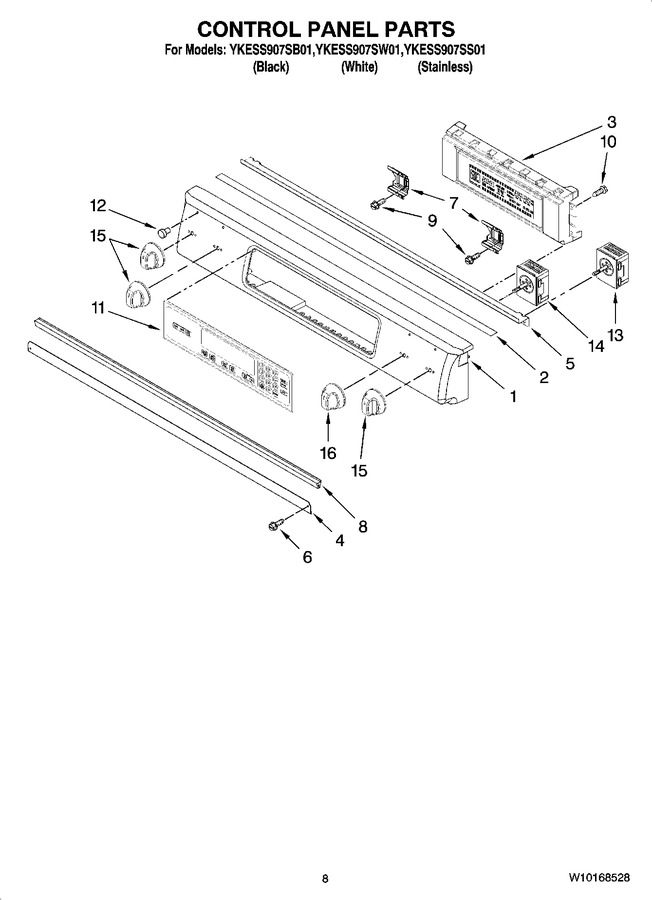

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10117025 | Control Panel (black) |
|
- | |||||
| 1 | W10117027 | Control Panel (white) |
|
- | |||||
| 1 | W10156271 | Control Panel (stainless) |
|
- | |||||
| 2 | W10110246 | Gasket, Console |
|
$ 123.31 | |||||
| 3 | 9761799 | Control, Electric |
|
- | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | W10117524 | Bracket, Console |
|
$ 36.94 | |||||
| 6 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 7 | 9761745 | Bracket, Thermostat (2) |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | 9780271 | Screw |
|
- | |||||
| 11 | WP9761566 | Membrane, Switch (Replaces: 9761566) |
|
Immediately | $ 405.23 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 13 | WP9763762 | Duel, Switch Lr, Lf, Rr (Replaces: 9763762) |
|
Immediately | $ 203.66 | ||||
| 14 | WP9763761 | Single Switch Rf (Replaces: 9763761) |
|
Immediately | $ 196.75 | ||||
| 15 | WPW10193253 | Knob, Smart Duel Lf, Lr, Rr (white) (Replaces: W10130392) |
|
Immediately | $ 19.84 | ||||
| 15 | WPW10156260 | Knob, Smart Duel Lf, Lr, Rr (stainless) (Replaces: W10156260) |
|
Immediately | $ 59.97 | ||||
| 15 | WPW10193255 | Knob, Smart Duel Lr, Lr, Rr (black) (Replaces: W10130391) |
|
$ 25.86 | |||||
| 16 | W10156261 | Knob, Smart Single Rf (stainless) |
|
$ 16.61 | |||||
| 16 | W10130387 | Knob, Smart Single Rf (black) |
|
- | |||||
| 16 | WPW10193257 | Knob, Smart Single Rf (white) (Replaces: W10130388) |
|
Immediately | $ 18.67 |
