01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts

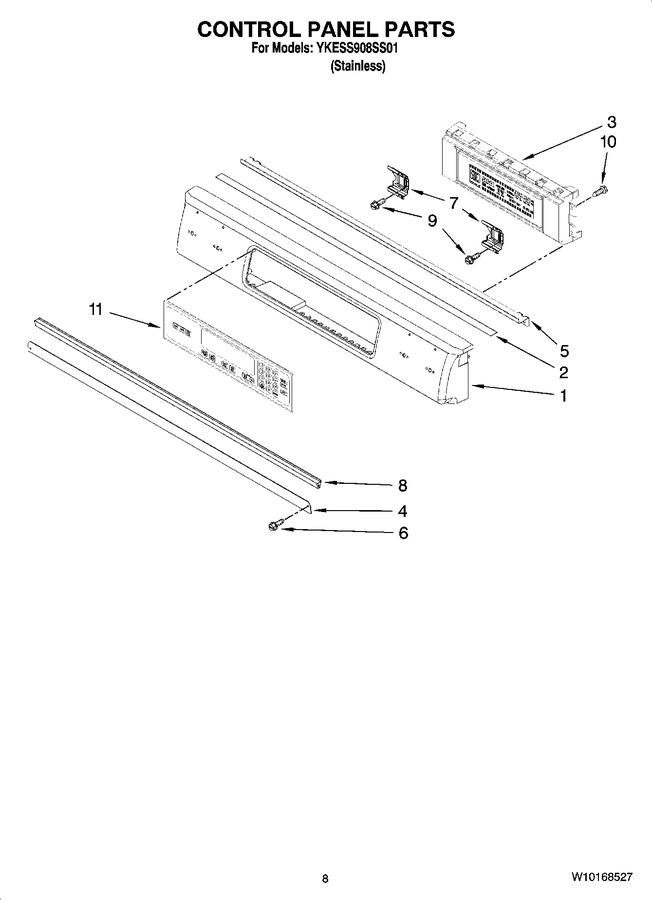

05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156272 | Control Panel |
|
$ 190.83 | |||||
| 2 | W10110246 | Gasket, Console |
|
$ 123.31 | |||||
| 3 | 9761799 | Control, Electric |
|
- | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | W10117524 | Bracket, Console |
|
$ 36.94 | |||||
| 6 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 7 | 9761745 | Bracket, Thermostat (2) |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | 9780271 | Screw |
|
- | |||||
| 11 | WP9761566 | Membrane, Switch (Replaces: 9761566) |
|
Immediately | $ 405.23 |
