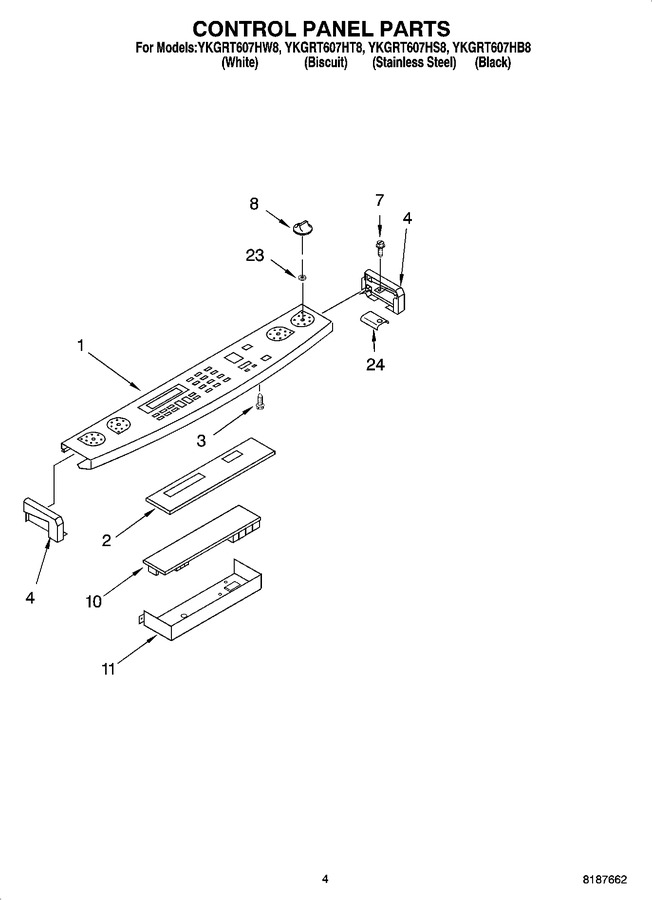

03 - Control Panel Parts


04 - Door And Drawer Parts


05 - Oven Chassis Parts


06 - Broiler & Oven Burner Parts


07 - Oven Parts


08 - Rear Chassis Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9782418CB		Console, Glass (black)				$ 358.32
1	9782418CC		Console, Glass (biscuit)		Appelez-nous	-
1	9782418CW		Console, Glass (white)		Appelez-nous	-
2	9782430		Board, Display		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751279FB		(end Cap Left Hand) (black)		Appelez-nous	-
4	9751279FC		End Cap (left Hand) (biscuit)		Appelez-nous	-
4	9751279FW		End Cap (left Hand) (white)		Appelez-nous	-
4	9751280FC		End Cap (right Hand) (biscuit)		Appelez-nous	-
4	9751280FB		End Cap (right Hand) (black)		Appelez-nous	-
4	9751280FW		End Cap (right Hand) (white)		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9751199FW		Knobs, Control (white)				$ 19.89
8	W10405147		Knobs, Control (black)   (Replaces: 9751199FF)				$ 87.20
8	9751199FC		Knobs, Control (biscuit)				$ 5.71
10	9782435		Board, Power				$ 303.48
11	9755021		Shield, Control Panel		Appelez-nous	-
23	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
24	9781488		Spacer, Bottom Trim		Appelez-nous	-
