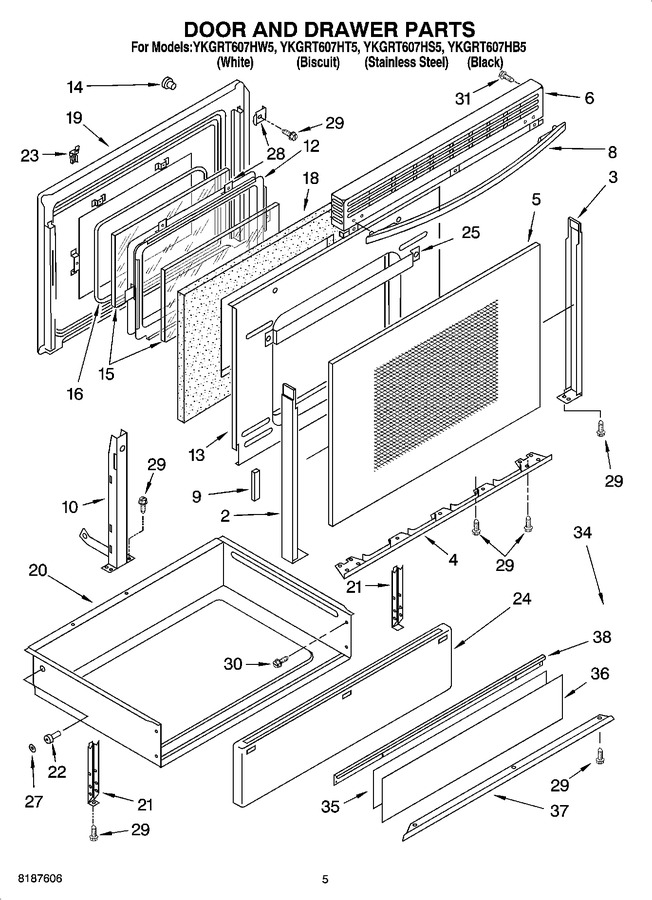

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 9782003PW | Trim, Door-left (white) |
|
- | |||||
| 2 | 9782003PC | Trim, Door-left (biscuit) |
|
- | |||||
| 2 | 9782003PB | Trim, Door-left (black) |
|
- | |||||
| 3 | 9782004PC | Trim, Door-right (biscuit) |
|
- | |||||
| 3 | 9782004PW | Trim, Door-right (white) |
|
- | |||||
| 3 | 9782004PB | Trim, Door-right (black) |
|
- | |||||
| 4 | 9781209PC | Trim, Door Bottom (biscuit) |
|
- | |||||
| 4 | 9781209PB | Trim, Door Bottom (black) |
|
- | |||||
| 4 | 9781209PW | Trim, Door Bottom (white) |
|
- | |||||
| 5 | 9781627PB | Glass, Door (black) |
|
$ 153.46 | |||||
| 5 | 9754041 | Glass, Door (stainless) |
|
- | |||||
| 5 | 9781627PC | Glass, Door (biscuit) |
|
- | |||||
| 5 | 9781627PW | Glass, Door (white) |
|
- | |||||
| 6 | 9781659 | Gasket, Vent |
|
- | |||||
| 6 | 9753498GW | Vent, Door (white) |
|
- | |||||
| 6 | 9753498GB | Vent, Door (black) |
|
- | |||||
| 6 | 9753498GC | Vent, Door (biscuit) |
|
- | |||||
| 6 | 9781490 | Seal, Door |
|
- | |||||
| 8 | 9780523PC | Handle, Door (biscuit) |
|
- | |||||
| 8 | 9780523PW | Handle, Door (white) |
|
- | |||||
| 8 | 9780523PB | Handle, Door (black) |
|
- | |||||
| 9 | 9781449 | Gasket, Door Glass |
|
- | |||||
| 10 | WP9782033 | Hinge, Door R Or L (Replaces: 9782033) |
|
Immediately | $ 208.67 | ||||
| 12 | 9781602 | Frame, Window |
|
- | |||||
| 13 | 9781586 | Shield, Door |
|
- | |||||
| 14 | 238614 | Bumper, Rubber (Replaces: 9780771) |
|
$ 72.68 | |||||
| 15 | WP9781593 | Glass, Door (2) (Replaces: 9781593) |
|
$ 116.35 | |||||
| 16 | 9755177 | Seal, Glass |
|
$ 76.91 | |||||
| 18 | 9754006 | Insulation |
|
- | |||||
| 19 | 9781600GM | Liner, Door |
|
$ 140.49 | |||||
| 20 | 9750257 | For Stn. Steel Mdl |
|
- | |||||
| 20 | 9780583 | Drawer & Roller |
|
- | |||||
| 21 | 9750169 | Bracket, Drawer |
|
- | |||||
| 22 | 814229 | Support, Roller (Replaces: 423713) |
|
Immediately | $ 51.23 | ||||
| 23 | 9750676 | Retainer, Door |
|
- | |||||
| 24 | 9782109PB | Front, Drawer (for Stn.steel Mdl.) |
|
- | |||||
| 24 | 9782108PB | Front, Drawer (black) |
|
- | |||||
| 24 | 9782108PW | Front, Drawer (white) |
|
- | |||||
| 24 | 9782108PC | Front, Drawer (biscuit) |
|
- | |||||
| 25 | 9750693 | Heat Channel |
|
- | |||||
| 27 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 | |||||
| 28 | 9781502 | Retainer, Glass |
|
- | |||||
| 29 | 9780265 | Screw |
|
- | |||||
| 30 | 9780272 | Screw |
|
- | |||||
| 31 | WPW10001180 | Screw (Replaces: 9781072) |
|
$ 7.23 | |||||
| 35 | 9753329 | Spacer |
|
- | |||||
| 36 | 9754062 | Panel, Drawer (stainless) |
|
- | |||||
| 37 | 9750613PB | Trim, Drawer-btm |
|
- | |||||
| 38 | 9750614PB | Trim, Drawer-top |
|
- |
