01 - Cooktop Parts


02 - Cooktop Burner Parts


03 - Control Panel Parts


04 - Door And Drawer Parts


05 - Oven Chassis Parts


06 - Broiler & Oven Burner Parts


07 - Oven Parts


08 - Rear Chassis Parts, Miscellaneous Parts

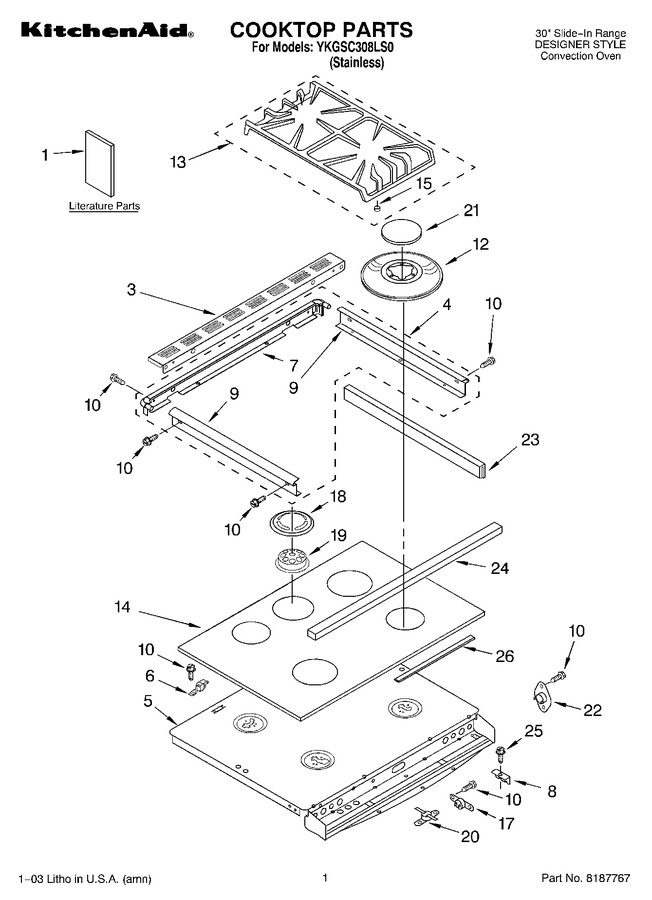

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9755630		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300643		Literature Parts (guide, Cleaner Use)		Appelez-nous	-
1	LIT9755630F		Literature Parts (installation Instructions (french))		Appelez-nous	-
1	LIT9754288		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9754288F		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT9754241		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT9754372		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9752775		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9753848		Literature Parts (lp Conv Instr.)		Appelez-nous	-
1	LIT4449264		Literature Parts (guide, Easy Set)		Appelez-nous	-
1	LIT4448687		Literature Parts (guide, Easy Set (french))		Appelez-nous	-
3	9755225PB		Vent, Rear		Appelez-nous	-
4	9781832PB		Frame, Cooktop		Appelez-nous	-
5	9754197		Support, Burner		Appelez-nous	-
6	9752003		Washer, Pivot		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
7	9781831PB		Trim, Rear (includes End Caps)		Appelez-nous	-
8	9753691		Support Clips (4)		Appelez-nous	-
9	9781828PB		Trim, Side		Appelez-nous	-
10	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
12	9753601GB		(bezel, Burner (black)) (6k Rf-lr)		Appelez-nous	-
12	9753600GB		(bezel, Burner (black)) (14k Lf)		Appelez-nous	-
12	9753602GB		Bezel, Burner (black) (12k Rr)		Appelez-nous	-
13	9753616GB		Grate, Burner		Appelez-nous	-
14	9753606CB		Cooktop, Glass		Appelez-nous	-
15	814323		Pad, Grate (4)   (Replaces: 9752638)			Immediately	$ 10.28
17	341196		Thermo-disc				$ 33.17
18	9751271GB		Cap, Vent		Appelez-nous	-
19	9751366		Cap, Vent		Appelez-nous	-
20	WP9759944		Fuse, Bi-metal   (Replaces: 9751984)			Immediately	$ 121.57
21	WP3191904		Cap, Burner (black) (12k Rr)   (Replaces: 3191904)				$ 157.85
21	9753939GB		(cap, Burner (black)) (14k Lf)				$ 49.08
21	WP3191898		(cap, Burner (black)) (6k Rf-lr)   (Replaces: 3191898)				$ 60.86
22	9752006		Thermostat, Fixed				$ 130.03
23	9752034		Seal, Rubber (2)		Appelez-nous	-
24	9754103		Gasket, Cooktop				$ 53.36
25	9751871		Screw, 10-16 X 1		Appelez-nous	-
26	9754136		Pad, Cooktop				$ 20.15
