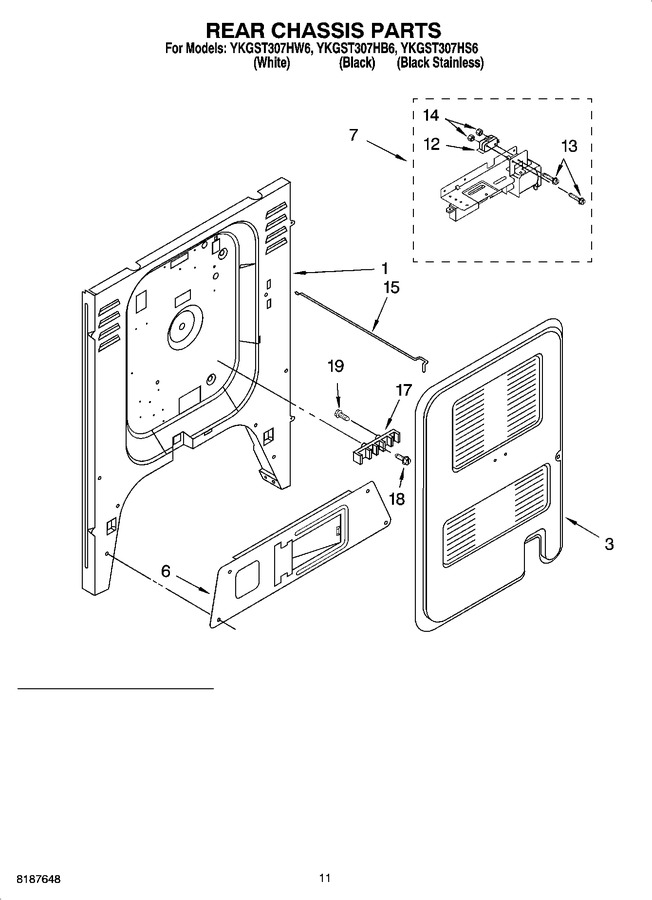

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751051 | Back Panel, Chassis |
|
- | |||||
| 3 | 9751353 | Panel, Rear Cover |
|
- | |||||
| 6 | 9751500 | Bracket, Regulator Valve |
|
- | |||||
| 7 | 9755001 | Oven Lock Assembly |
|
- | |||||
| 12 | 9754291 | Switch, Interloc |
|
- | |||||
| 13 | 9750887 | Screw, 4-40 X 1 |
|
- | |||||
| 14 | 9750888 | Nut (2) |
|
- | |||||
| 15 | 9750523 | Rod, Lock |
|
- | |||||
| 17 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 18 | 98884 | Screw, 10-16 X 1 |
|
- | |||||
| 19 | 340184 | Screw, 10-16 X 1.5 |
|
$ 12.10 | |||||
| 9754366 | Jumper, Wire (s/i No Bake) |
|
- | ||||||
| WA906B | Scraper (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| 9750984 | Hanger, Cable |
|
- | ||||||
| WPW10339879 | Tie, Wire (Replaces: 20082084) |
|
$ 7.11 | ||||||
| 9782111 | Wrap, Tie |
|
- | ||||||
| 9781555 | Clip, Wire |
|
- | ||||||
| 9753374 | Harness, Wire (dual Oven Light) |
|
- | ||||||
| 9782344 | Jumper, Wire (spark Module) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 46.30 | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 9754004 | Insulation, Wrap |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 9754011 | Insulation, Rear |
|
- | ||||||
| 9754005 | Insulation, Bottom |
|
- | ||||||
| 9754301 | Insulation, Flue |
|
- | ||||||
| 9753543 | Glass Cleaner |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 9753604 | Gas Conversion Kit (lp) |
|
- | ||||||
| 9752717 | Gas Conversion Kit ((natural)) |
|
- | ||||||
| 261582 | Grease |
|
- | ||||||
| 9751745 | Anti-tip Kit |
|
$ 19.35 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 9755018 | Harness, Wire (main Harness) |
|
- | ||||||
| 9754289 | Harness, Wire (neutral Gas) |
|
- | ||||||
| 9755256 | Harness, Wire (spark Control) |
|
- | ||||||
| 9755193 | Harness, Wire (oven Door) |
|
- | ||||||
| 9752769 | Harness, Wire (dual Cooktop) |
|
- | ||||||
| 9755024 | Harness, Wire (meat Probe) |
|
- | ||||||
| 9755025 | Harness, Wire (fan/bms) |
|
- | ||||||
| 9755023 | Harness, Wire (pwr Brd/dsply) |
|
- | ||||||
| 9751868 | Grommet, Harness |
|
- | ||||||
| 9781055 | Power Cord |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 |
