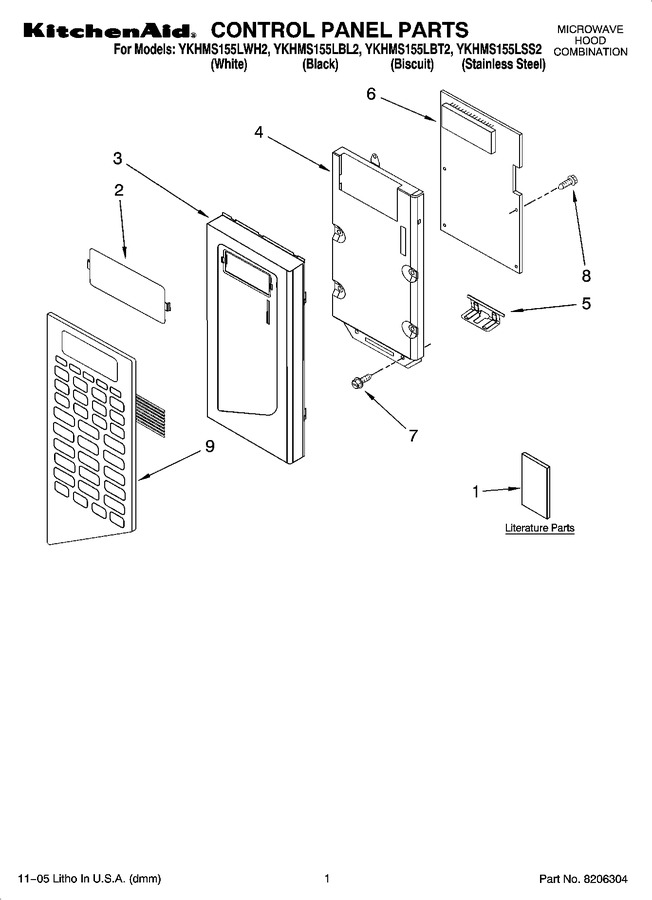

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205951 | Use & Care Guide |
|
- | |||||
| 1 | 8185497 | Tech Sheet |
|
- | |||||
| 1 | 8185496 | Cooking Guide Label (english) |
|
- | |||||
| 1 | 8204749 | Cooking Guide Label (french) |
|
- | |||||
| 1 | 8183879 | Installation Instructions |
|
- | |||||
| 2 | 4393905 | Lens |
|
- | |||||
| 3 | 8169729 | Panel, Control (white) |
|
- | |||||
| 3 | 8169730 | Panel, Control (black) |
|
- | |||||
| 3 | 8169731 | Panel, Control (stainless) |
|
- | |||||
| 3 | 8169732 | Panel, Control (biscuit) |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8183822 | Pcb Assembly |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 9 | 8169726 | Switch, Membrane (white) |
|
- | |||||
| 9 | 8169727 | Switch, Membrane (black) |
|
- | |||||
| 9 | 8169728 | Switch, Membrane (biscuit) |
|
- |
