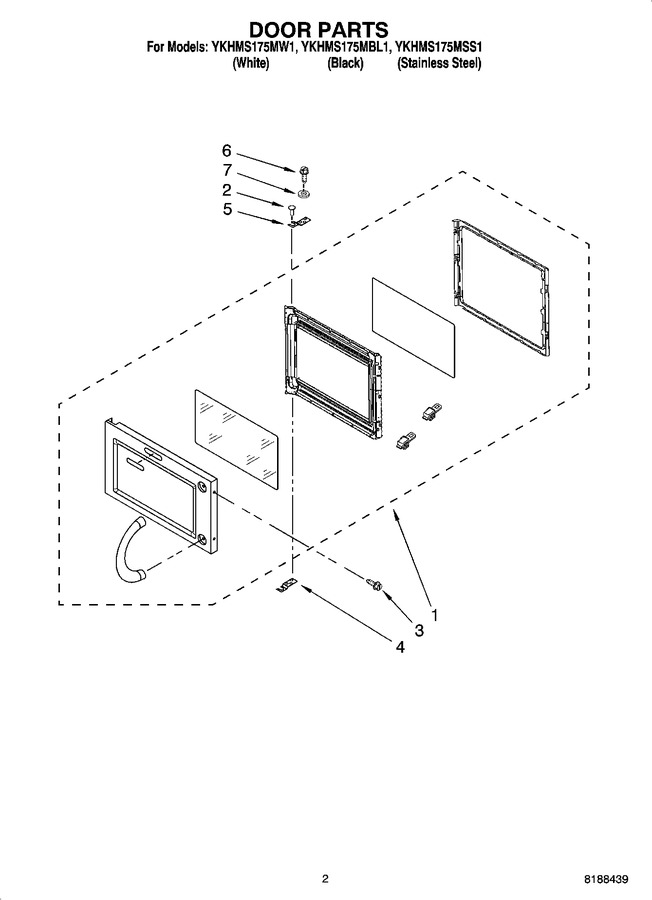

02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8204969 | Door Assembly (white) |
|
- | |||||
| 1 | 8204972 | Door Assembly (black) |
|
- | |||||
| 1 | 8204970 | Door Assembly (stainless Steel) |
|
- | |||||
| 2 | 8184922 | Pivot, Door |
|
- | |||||
| 3 | 8169479 | Screw |
|
$ 6.26 | |||||
| 4 | 8204678 | Hinge, Lower |
|
- | |||||
| 5 | 8204679 | Hinge, Upper |
|
- | |||||
| 6 | 8169480 | Screw |
|
$ 11.15 | |||||
| 7 | WP8533914 | Washer (Replaces: 4393278) |
|
Immediately | $ 4.04 |
