SELECT A DIAGRAM

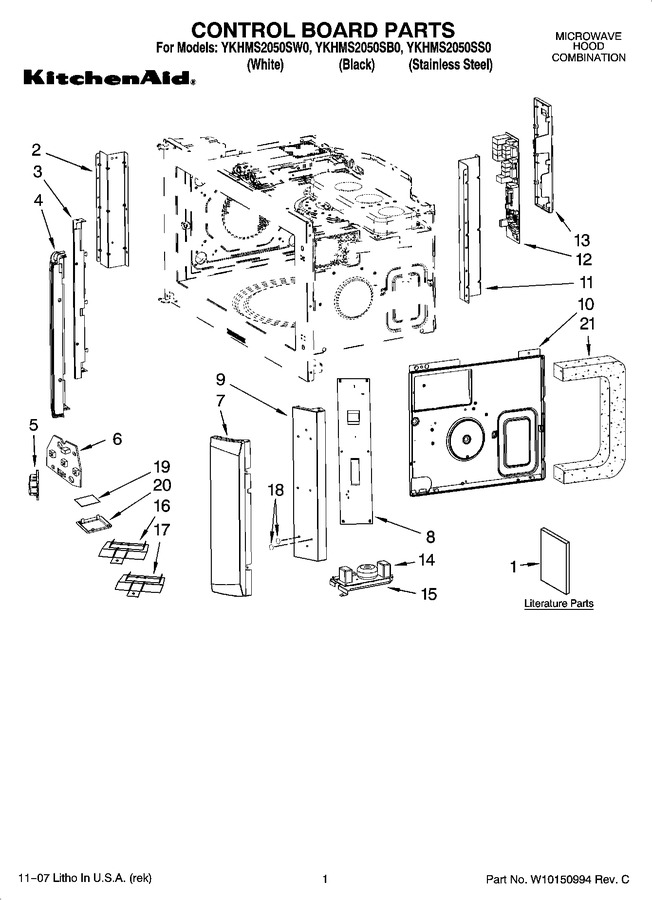

01 - Control Board Parts


02 - Door Parts


03 - Ventilation Parts


04 - Interior And Air Flow Parts


05 - Rack And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206643		Use & Care Guide		Appelez-nous	-
1	8206644		Tech Sheet (full)		Appelez-nous	-
1	W10132017		Tech Sheet(lt En)		Appelez-nous	-
1	W10132031		Tech Sheet(lt Fr)		Appelez-nous	-
1	8206645		Quick Reference		Appelez-nous	-
1	8206646		Installation Instr		Appelez-nous	-
1	W10179528		Cook Guide(fr)		Appelez-nous	-
2	8206039		Support, Cavity (left)		Appelez-nous	-
3	8206040		Plate, Protection (left)		Appelez-nous	-
4	W10150996		Side Panel, Left (stainless Steel)		Appelez-nous	-
4	8206478		Side Panel, Left (white)		Appelez-nous	-
4	8206479		Side Panel, Left (black)		Appelez-nous	-
5	8206485		Button (stainless Steel)				$ 27.29
5	8206483		Button (black)		Appelez-nous	-
5	8206482		Button (white)				$ 36.39
6	WPW10403040		Hood/light Switch Board   (Replaces: 8206486)			Immediately	$ 217.91
7	8206492		Side Panel, Right (stainless Steel)		Appelez-nous	-
7	W10150999		Side Panel, Right (white)				$ 47.37
7	8206490		Side Panel, Right (black)		Appelez-nous	-
8	W10174525		Control Board, (relay)				$ 132.47
9	8206061		Plate, Protection (right)				$ 68.19
10	W10113785		Plate, Chassis				$ 76.77
11	8206065		Support, Cavity (right)				$ 60.94
12	WP8206493		Board, Relay   (Replaces: 8206493)				$ 235.40
13	8206053		Holder, Microcomputer		Appelez-nous	-
14	8206062		Ac Line Filter		Appelez-nous	-
15	8206060		Holder, Filter				$ 62.51
16	W10113782		Resistor (50w)		Appelez-nous	-
17	W10113783		Resistor (25w)				$ 90.03
18	W10113784		Spacer (6)				$ 6.76
19	8169499		Glass, Lamp		Appelez-nous	-
20	8169646		Frame, Glass				$ 6.64
21	W10143955		Seal, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
