Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 8206117 Rack Appelez-nous -
3 W10315274 Hook, Rack (4)   (Replaces: 8206118) Special Order $ 39.68

4 8204670 Lamp, Cavity In-Stock Immediately $ 25.94

5 W10113781 Holder, Lamp Special Order $ 9.43

6 8205980 Deflector, Air Special Order $ 85.38

7 W10748097 Plate, Crisp   (Replaces: 8205996) Special Order $ 47.57

8 8205992 Turntable Special Order $ 92.28

9 8206222 Ring, Turntable Special Order $ 30.43

10 8205994 Driver, Turntable Special Order $ 29.54

11 W10851464 Handle   (Replaces: W10106520) Special Order $ 22.35

12 8206034 Clip, Cavity Lamp Appelez-nous -
13 8184109 Spacer   (Replaces: 8206101) Special Order $ 6.26

14 W10143959 Motor, Turntable Appelez-nous -
15 4393832 Screw Special Order $ 11.55

16 8206116 Spacer Appelez-nous -
17 8206066 Cover, Inlet Appelez-nous -
18 8206476 Lid, Lamp Special Order $ 7.51


    View Diagram in Separate Window     Print Icon   Print Part List

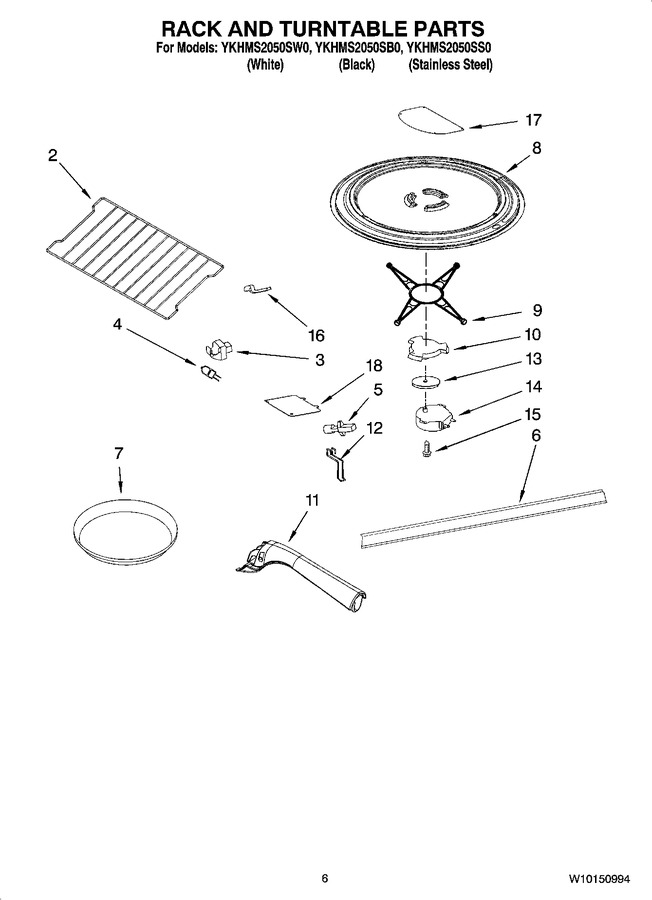

Diagram for YKHMS2050SS0
