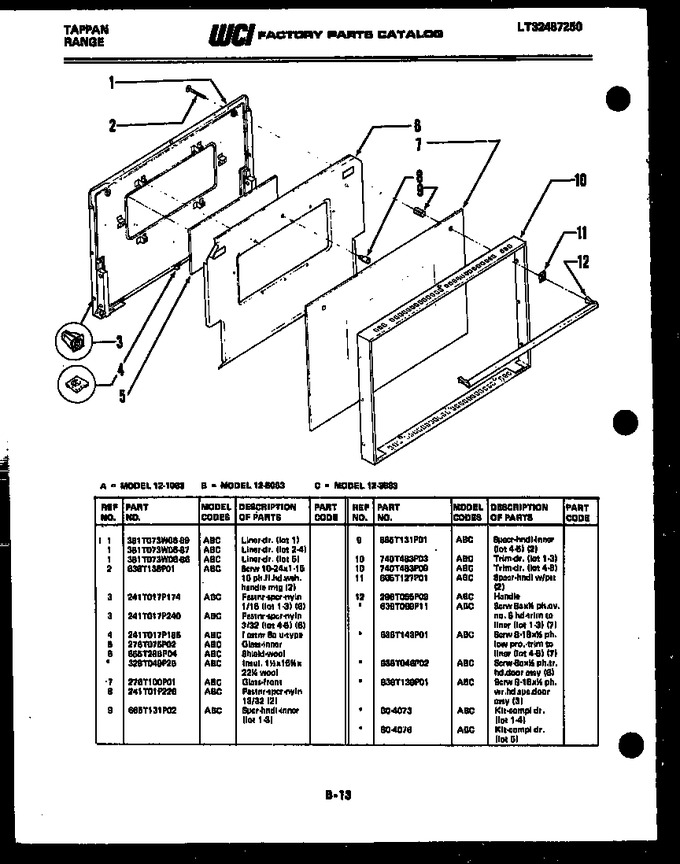

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Door Parts
04 - Body Parts
05 - Gas Control
06 - Broiler Drawer And Door Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T073W06-89 | Liner-dr. (lot 1) |
|
- | |||||
| 1 | 381T073W06-86 | Liner-dr (lot 5) |
|
- | |||||
| 1 | 381T073W06-87 | Liner-dr (lot 2, 4) |
|
- | |||||
| 2 | 636T138P01 | Scrw 10-24 X 1-15 16 Ph. Fl. Hd. Wsh. Handle Mtg (2) |
|
- | |||||
| 3 | 241T017P174 | Fastnr-spcr-nyln 1/16 (lot 1-3) (6) |
|
- | |||||
| 3 | 241T017P240 | Fastnr-spcr-nyln 3/32 (lot 4-5) (6) |
|
- | |||||
| 4 | 241T017P185 | Fastnr 8a U-type |
|
- | |||||
| 5 | 276T075P02 | Glass-inner |
|
- | |||||
| 6 | 655T288F04 | Shield-wool |
|
- | |||||
| 7 | 276T100P01 | Glass-front |
|
- | |||||
| 8 | 241T01P226 | Fastnr-spcr-nyln 13/32 (2) |
|
- | |||||
| 9 | 665T131P01 | Spacr-hndl-inner (lot 4-5) (2) |
|
- | |||||
| 9 | 665T131P02 | Spcr-hndl-inner (lot 1-3) |
|
- | |||||
| 10 | 740T483P09 | Trim-dr. (lot 4-5) |
|
- | |||||
| 10 | 740T483P03 | Trim-dr. (lot 1-3) |
|
- | |||||
| 11 | 665T127P01 | Spacr-hndl W/pst (2) |
|
- | |||||
| 12 | 296T055P09 | Handle |
|
- | |||||
| *81418 | 636T069P11 | Scrw 8a X 1/2 Ph. Ov. No. 6 Hd-trim To Liner (lot 1-3) ( |
|
- | |||||
| *81419 | 636T143P01 | Screw |
|
- | |||||
| *81420 | 636T046P02 | Scrw-8a X 1/2 Ph. Tr. Hd. Door Assy (6) |
|
- | |||||
| *81421 | 636T139P01 | Scrw 8-18 X 1/2 Ph. Wr. Hd. Spc. Door Assy (3) |
|
- | |||||
| *81421 | 80-4073 | Kit-compl Dr. (lot 1-4) |
|
- | |||||
| *81421 | 80-4076 | Kit-compl Dr. (lot 5) |
|
- | |||||
| 6A | 328T049P25 | Insul. 1 1/2 X 16 3/4 X 22 1/4 Wool (non-illustrated) |
|
- |
