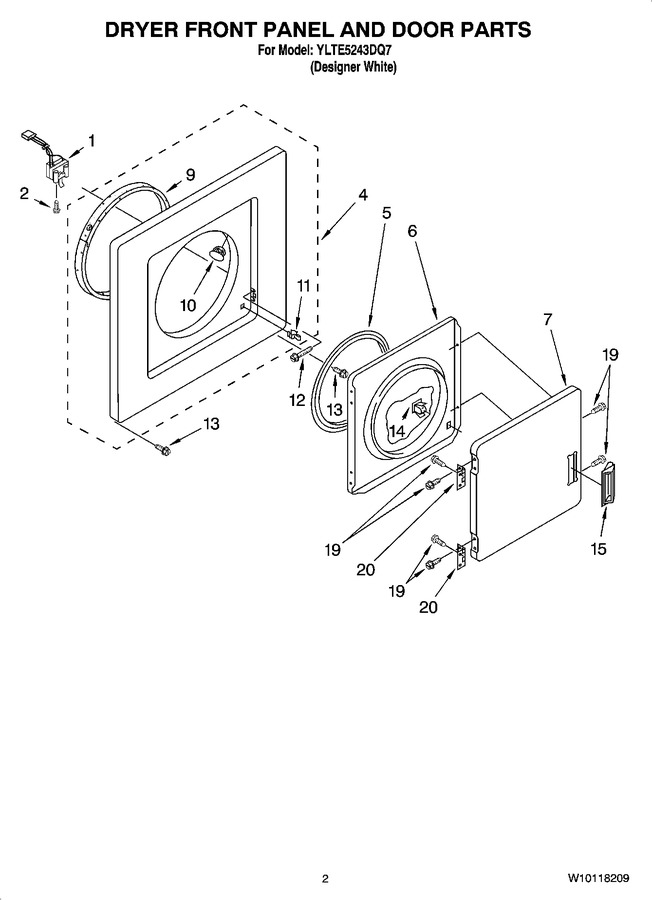

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3406108		Door Switch   (Replaces: 3406108)			Immediately	$ 37.10
2	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 6.93
4	285314		Panel, Front   (Replaces: 692619)				$ 266.36
5	W11613302		Seal, Door   (Replaces: 3390734)				$ 48.27
6	280077		Door, Rear   (Replaces: 695656)				$ 177.82
7	WP348205		Door, Front   (Replaces: 348205)			Immediately	$ 132.65
9	279264		Bearing & Seal   (Replaces: 8066123)			Immediately	$ 67.07
10	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 18.59
11	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.00
12	WP681414		Screw, Door Switch Mounting (2)   (Replaces: 3390663)			Immediately	$ 7.07
13	WP681414		Screw, 10-16 X 1/2 (front Panel To Side Panel)   (Replaces: 343641)			Immediately	$ 7.07
14	WP3389441		Catch, Door   (Replaces: 3389441)			Immediately	$ 5.58
15	WP686711		Handle, Door   (Replaces: 686711)			Immediately	$ 7.16
19	WP694091		Screw, Door Mount To Hinge & Panel (10)   (Replaces: 694091)				$ 6.47
20	WP348023		Hinge & Pin, Door (2)   (Replaces: 348023)				$ 7.58
