Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8185096 Deflector, Air Appelez-nous -
2 8185097 Socket, Motor Wire Appelez-nous -
3 8185116 Base Plate Appelez-nous -
4 8185098 Air Guide (right) Appelez-nous -
5 4393945 Thermostat Appelez-nous -
6 8185099 Deflector, Cooling Air Appelez-nous -
7 8206232A Lamp   (Replaces: 4393681) In-Stock Immediately $ 6.61

8 8185215 Cooling Air Guide Appelez-nous -
9 8184825 Motor, Fan Appelez-nous -
10 8204736 Shield Appelez-nous -
11 8204996 Air Guide, Sealing Plate Appelez-nous -
12 8169561 Filter Appelez-nous -
13 8169474 Screw Special Order $ 8.51

14 8169478 Screw Appelez-nous -
15 4393830 Screw Appelez-nous -
16 8185115 Air Guide (left) Appelez-nous -
17 8205030 Cover, Light Appelez-nous -
18 8169539 Holder, Lamp Special Order $ 54.43


    View Diagram in Separate Window     Print Icon   Print Part List

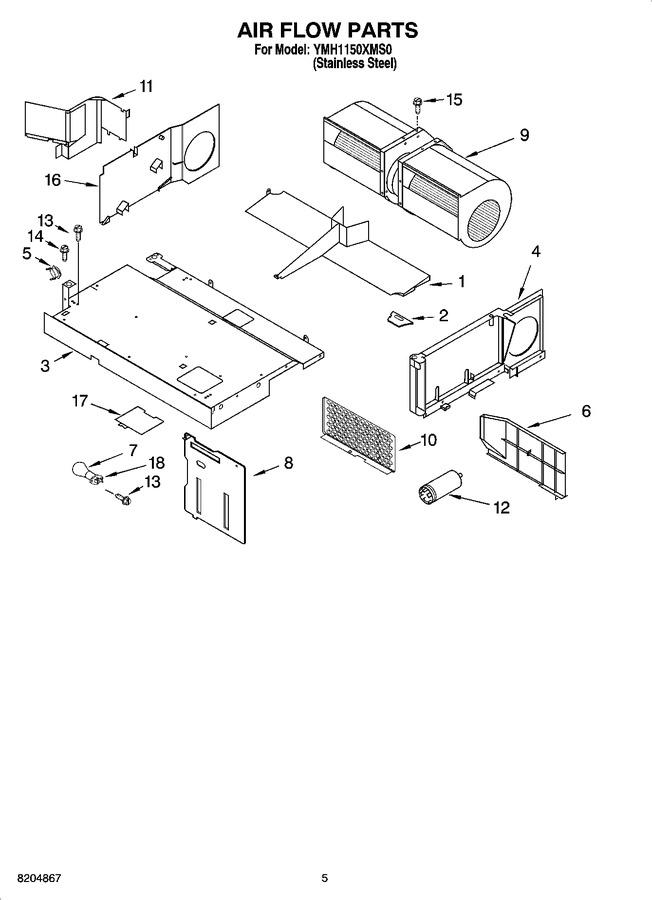

Diagram for YMH1150XMS0
