SELECT A DIAGRAM

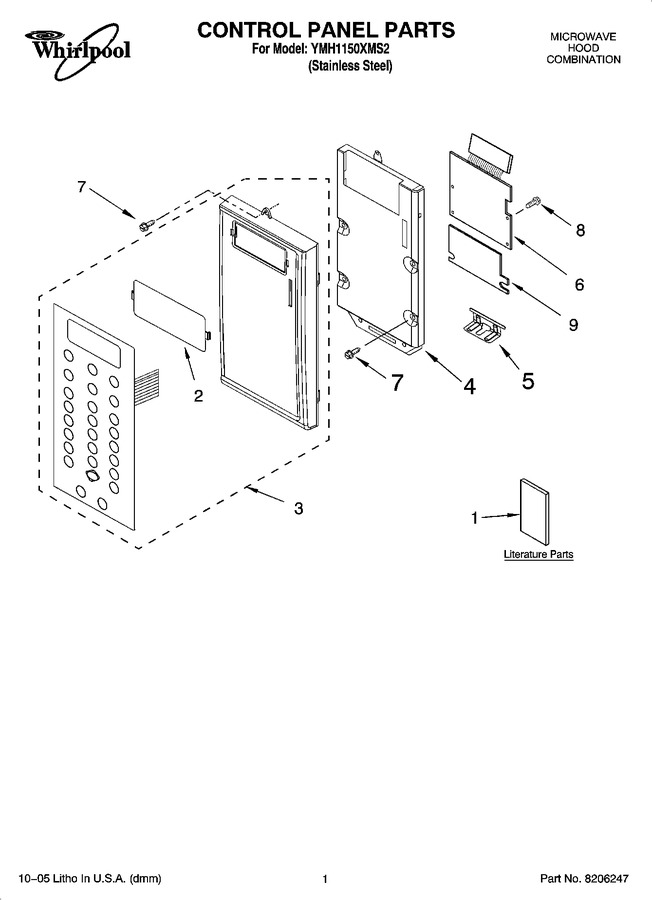

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8185480 | Use & Care Guide |
|
- | |||||
| 1 | 8205144 | Installation Instructions |
|
- | |||||
| 1 | 8205124 | Tech Sheet |
|
- | |||||
| 1 | 8185481 | Cook Guide Label (english) |
|
- | |||||
| 1 | 8204745 | Cook Guide Label (french) |
|
- | |||||
| 2 | 4393739 | Lens |
|
- | |||||
| 3 | 8205031 | Panel, Control (inlcudes 10) |
|
$ 245.34 | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8205032 | Pcb Assembly |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 9 | 8185122 | Foil, Pcb |
|
- |
