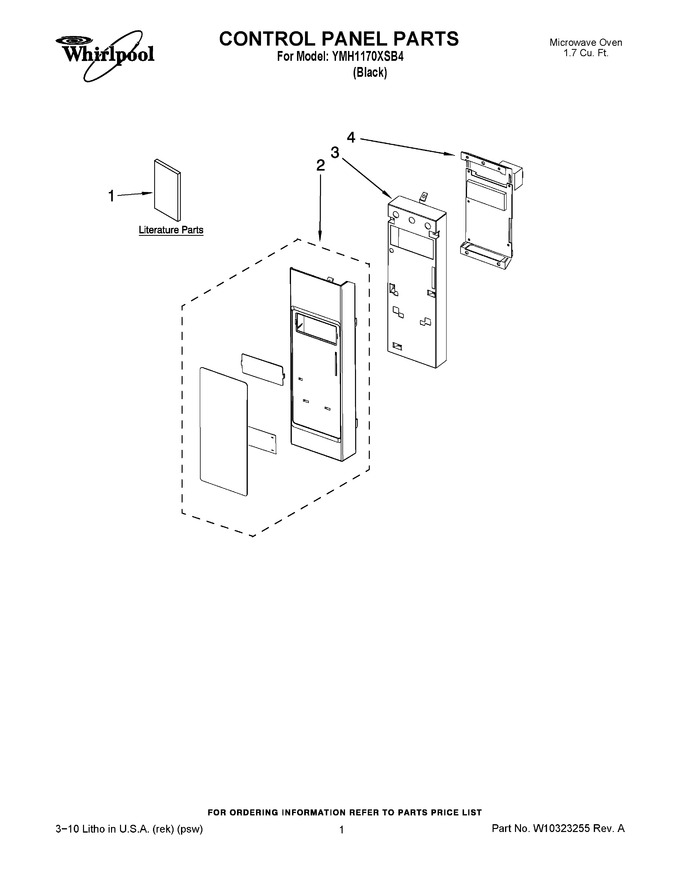

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10235335 | U & C Guide |
|
- | |||||
| 1 | W10132039 | Tech Sheet, English |
|
- | |||||
| 1 | W10132034 | Tech Sheet, French |
|
- | |||||
| 1 | W10238255 | Installation, Instructions |
|
- | |||||
| 1 | 8205885 | Cook Guide Label (english) |
|
- | |||||
| 1 | 8206019 | Cook Guide Label (french) |
|
- | |||||
| 2 | W10166190 | Panel Asy, Control Includes Lens And Membrane Switch (black) |
|
$ 168.72 | |||||
| 3 | W10156814 | Bracket, Control |
|
- | |||||
| 4 | W10197769 | Microcomputer |
|
- |
