SELECT A DIAGRAM

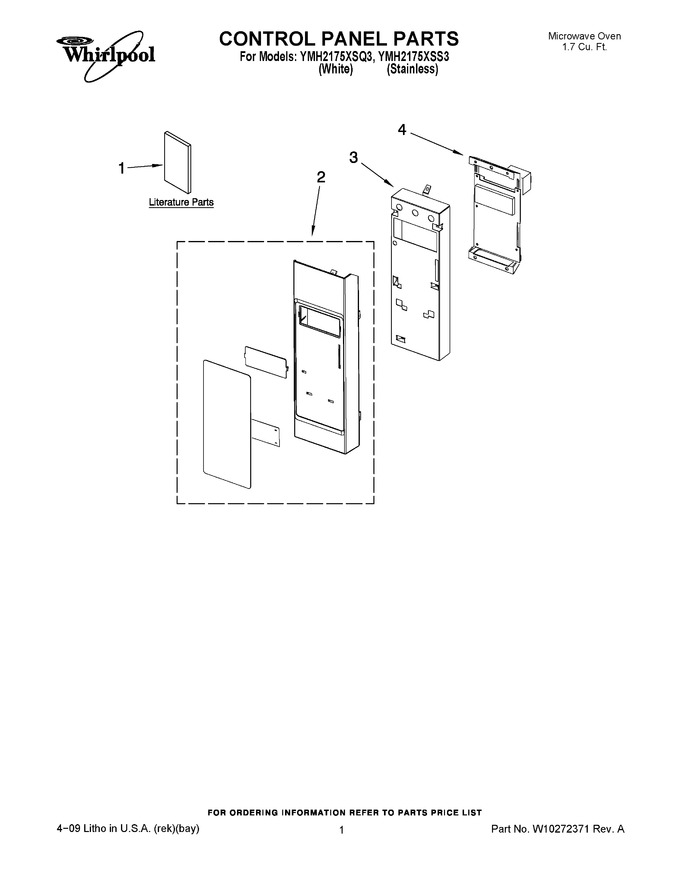

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170451		Owners Manual		Appelez-nous	-
1	W10132042		Tech Sheet, English		Appelez-nous	-
1	W10132035		Tech Sheet, French		Appelez-nous	-
1	8205888		Cook Guide Label (english)		Appelez-nous	-
1	8206004		Cook Guide Label (french)		Appelez-nous	-
2	W10166799		Panel Asy, Control Includes Lens And Membrane Switch (white)				$ 175.81
2	W10166801		Panel Asy, Control Includes Lens And Membrane Switch (stainless)				$ 117.62
3	W10210862		Bracket, Control				$ 17.62
4	W10197779		Microcomputer		Appelez-nous	-
