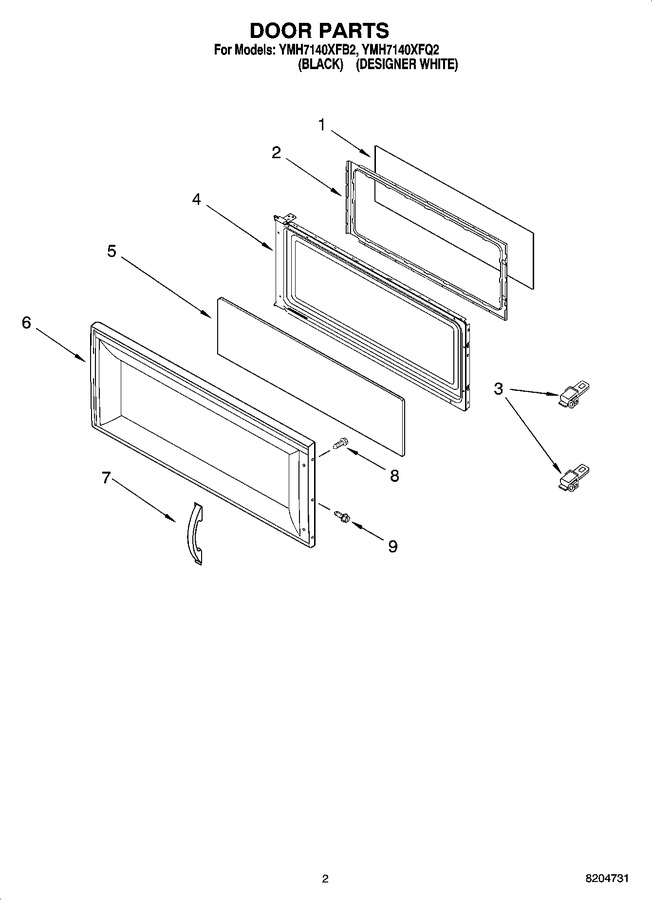

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4393870 | Film, Back |
|
- | |||||
| 2 | 8169545 | Frame, Inner |
|
$ 67.40 | |||||
| 3 | 4393913 | Latch, Door |
|
$ 54.19 | |||||
| 4 | 8169653 | Body, Door (white) |
|
$ 138.16 | |||||
| 4 | 8169460 | Body, Door (black) |
|
- | |||||
| 5 | 4393725 | Glass, Outer (black) |
|
$ 34.91 | |||||
| 5 | 8183704 | Glass, Outer (white) |
|
- | |||||
| 6 | 8169481 | Frame, Outer (white) |
|
$ 244.62 | |||||
| 6 | 8169353 | Frame, Outer (black) |
|
$ 256.49 | |||||
| 7 | 4393777 | Handle, Door (white) |
|
$ 159.51 | |||||
| 7 | 4393782 | Handle, Door (black) |
|
Immediately | $ 149.84 | ||||
| 8 | 4393833 | Screw |
|
$ 6.79 | |||||
| 9 | 8169479 | Screw (Replaces: 4393841) |
|
$ 6.26 |
