SELECT A DIAGRAM

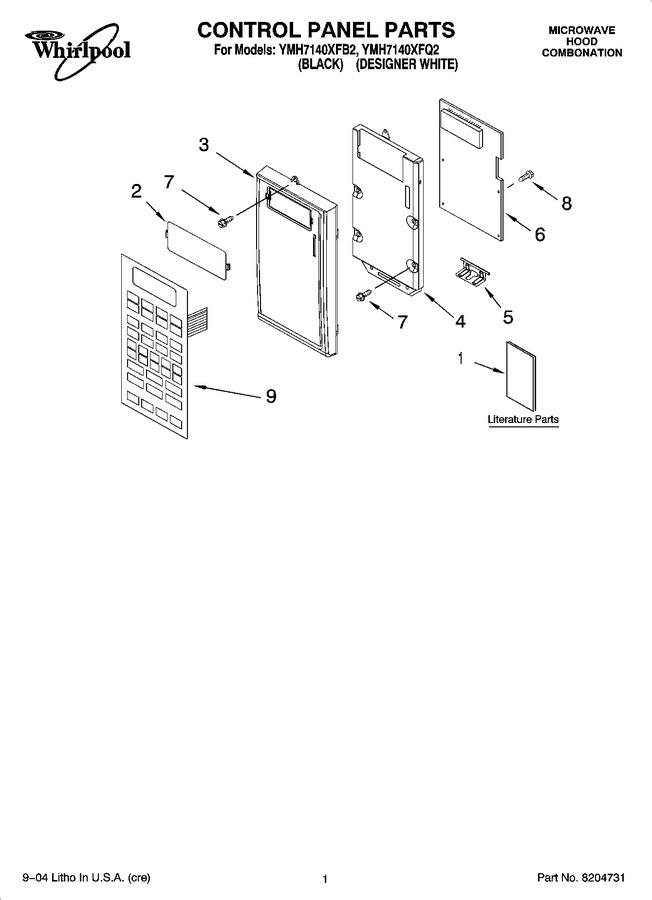

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8204735 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8183732 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8184507 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | 8169571 | Cook Guide Label (english) |
|
- | |||||
| 1 | 8169296 | Cook Guide Label (french) |
|
- | |||||
| 1 | LIT8169765 | Literature Parts (template-wall) |
|
- | |||||
| 1 | LIT8183734 | Literature Parts (template-upper Cab) |
|
- | |||||
| 2 | 4393905 | Lens |
|
- | |||||
| 3 | 8183926 | Panel, Control (white) |
|
- | |||||
| 3 | 8204733 | Panel, Control (black) |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8204734 | Pcb Assembly |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 9 | 8169452 | Switch, Membrane (white) |
|
- | |||||
| 9 | 8169453 | Switch, Membrane (black) |
|
- |
